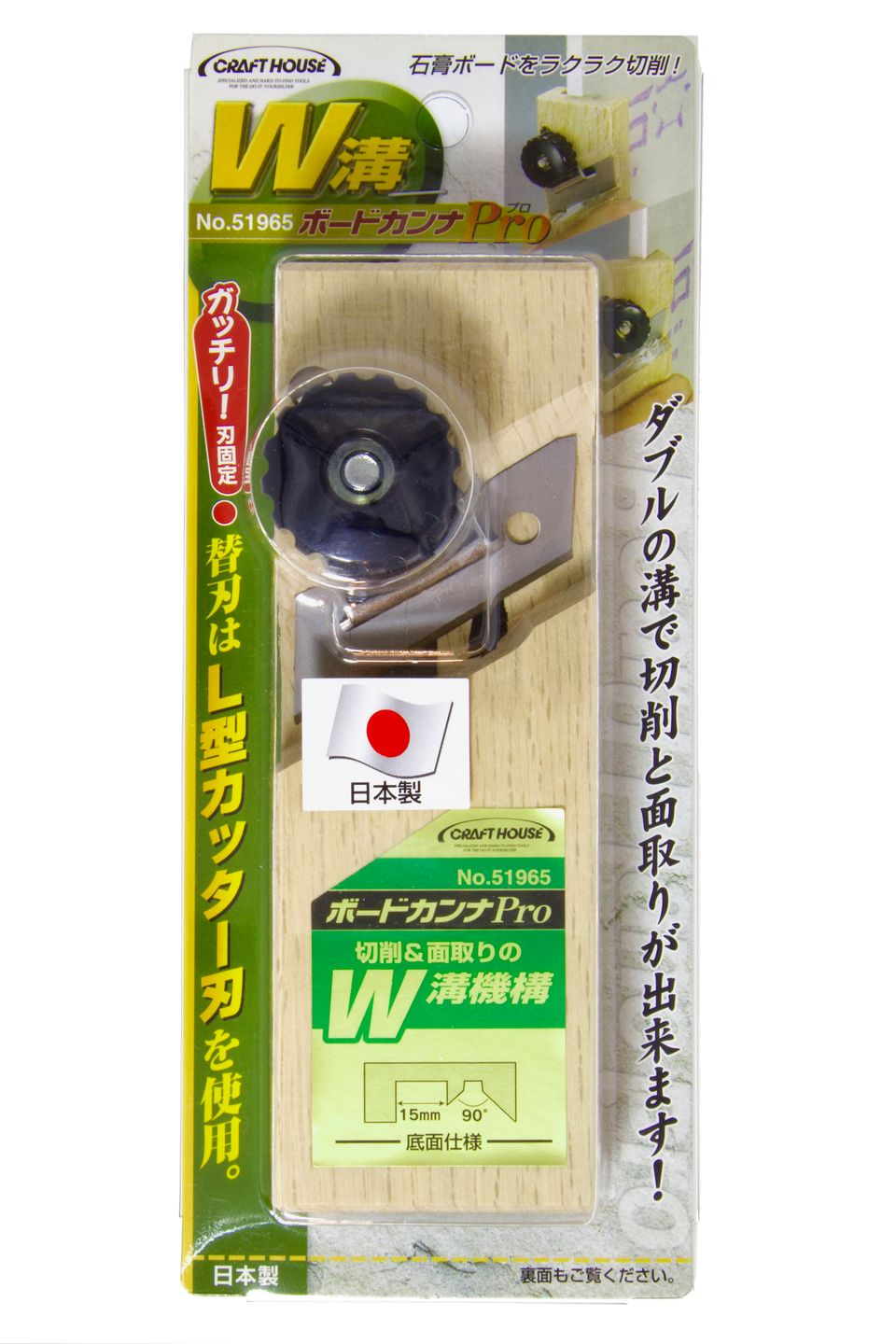

Craft House 51965 Kanna Japanese Chamfer Plane 2-in-1 Wood Tool 15mm Flat 90° V Groove for Chamfering Beveling or Flat Edge Planing Replaceable Blade
Easily create accurate 15mm flat shaving, or 90° Chamfering on wood, drywall or sheet boards using this compact Japanese hand plane with dual cutting grooves and replaceable blade.
In stock
🔒 Secure checkout (Credit Card, Bank Transfer, & PayPal available)
✈️ Get your order in as soon as three days*
🌏 Worldwide shipping available
💰 Save on shipping when you buy multiple items

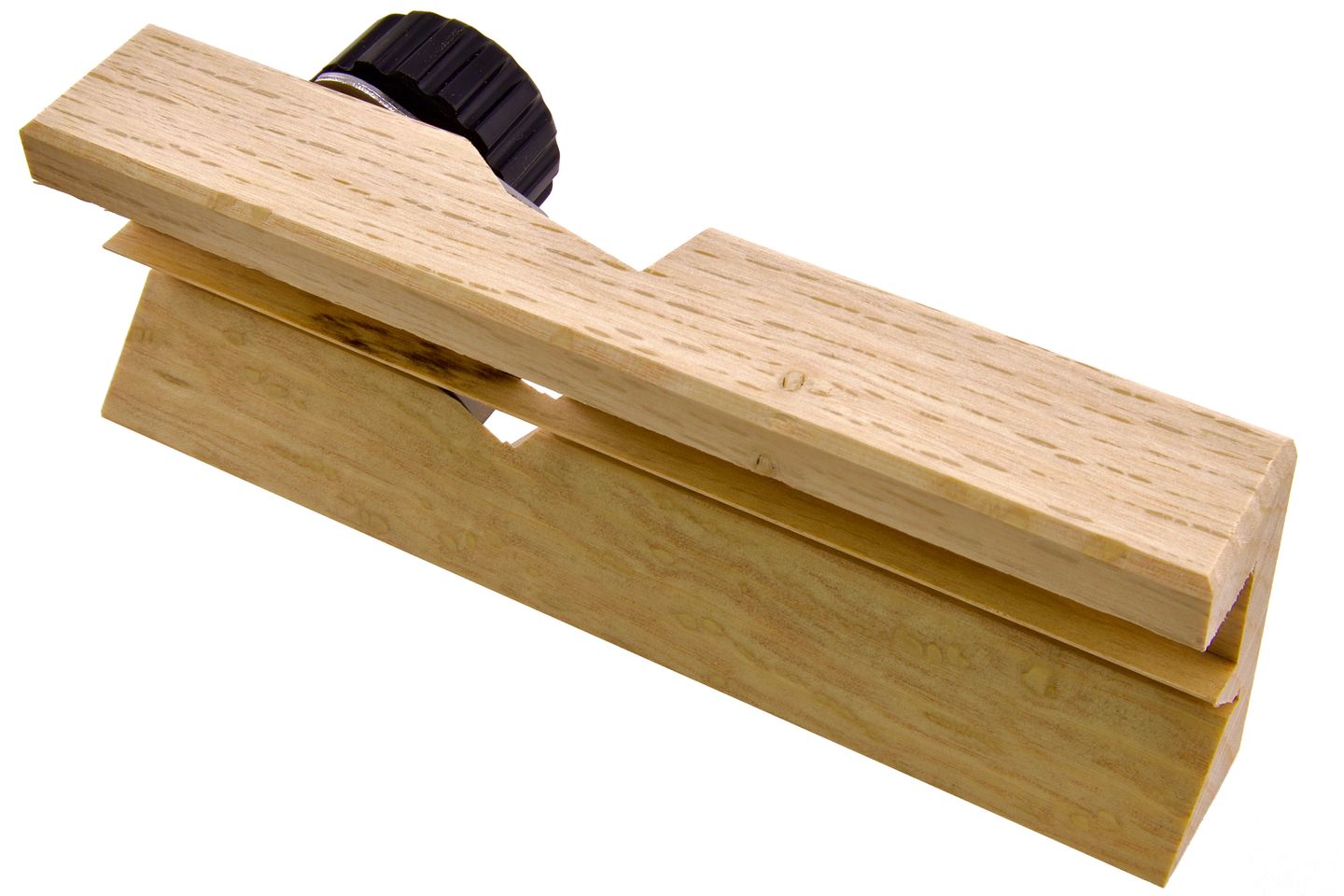

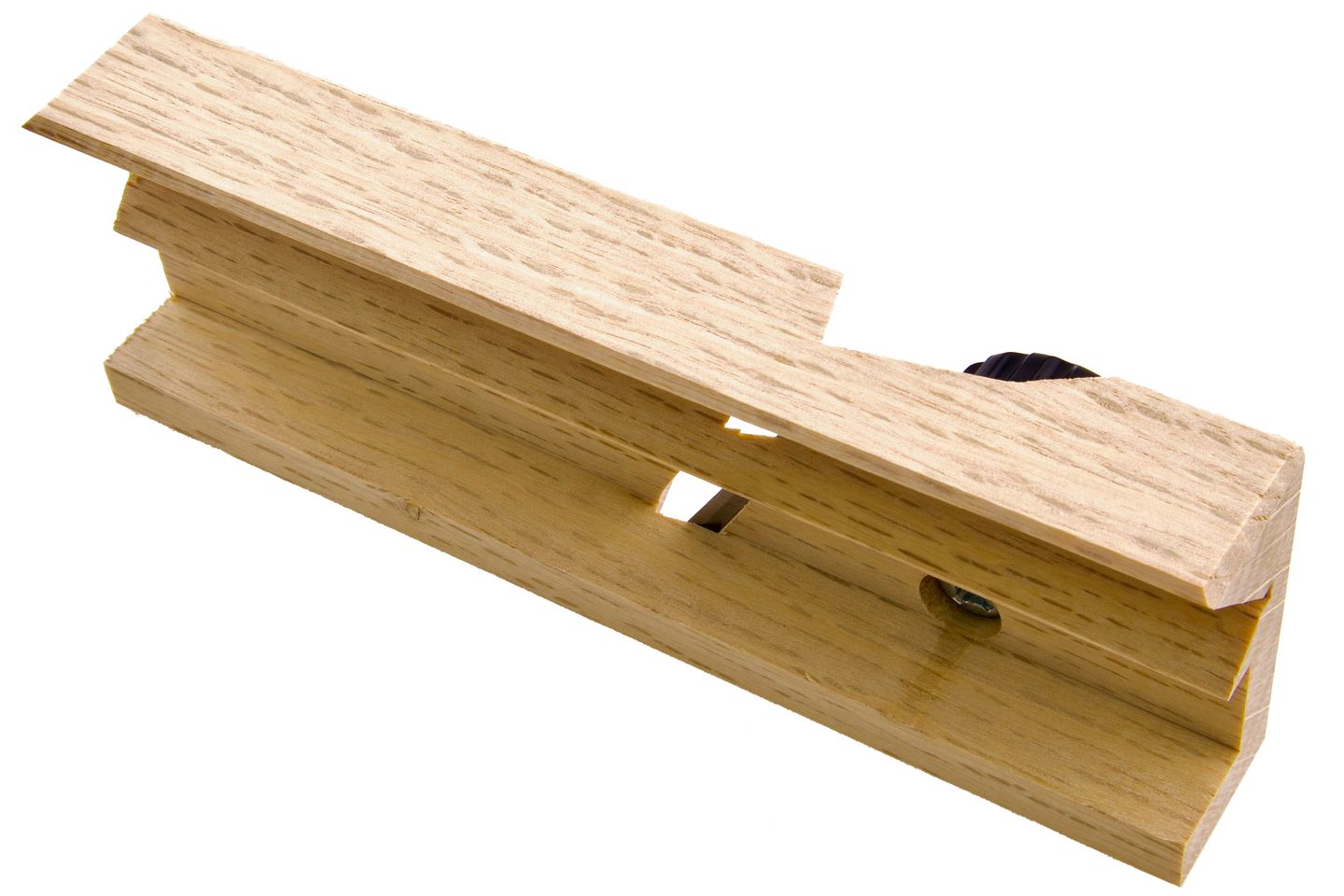

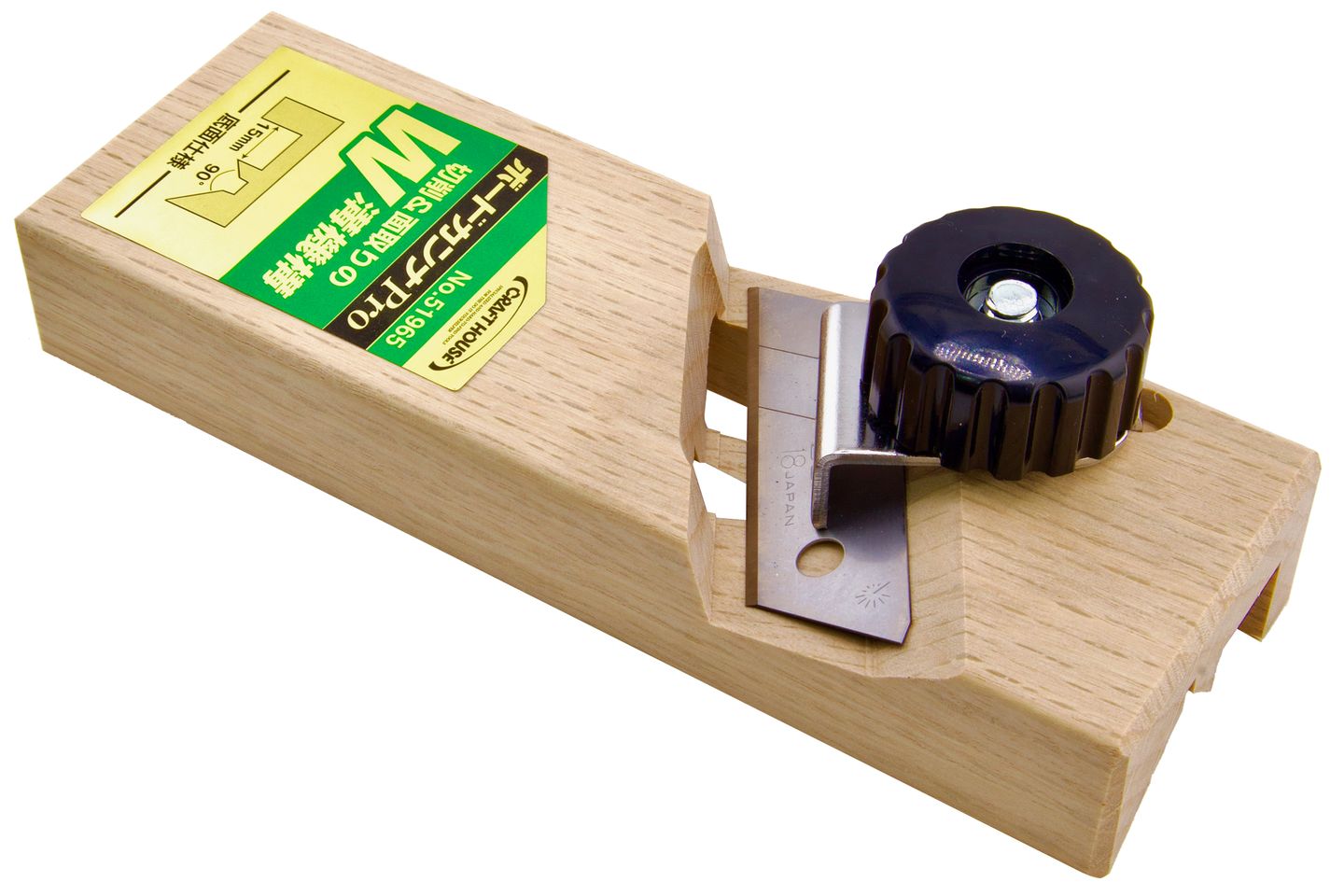

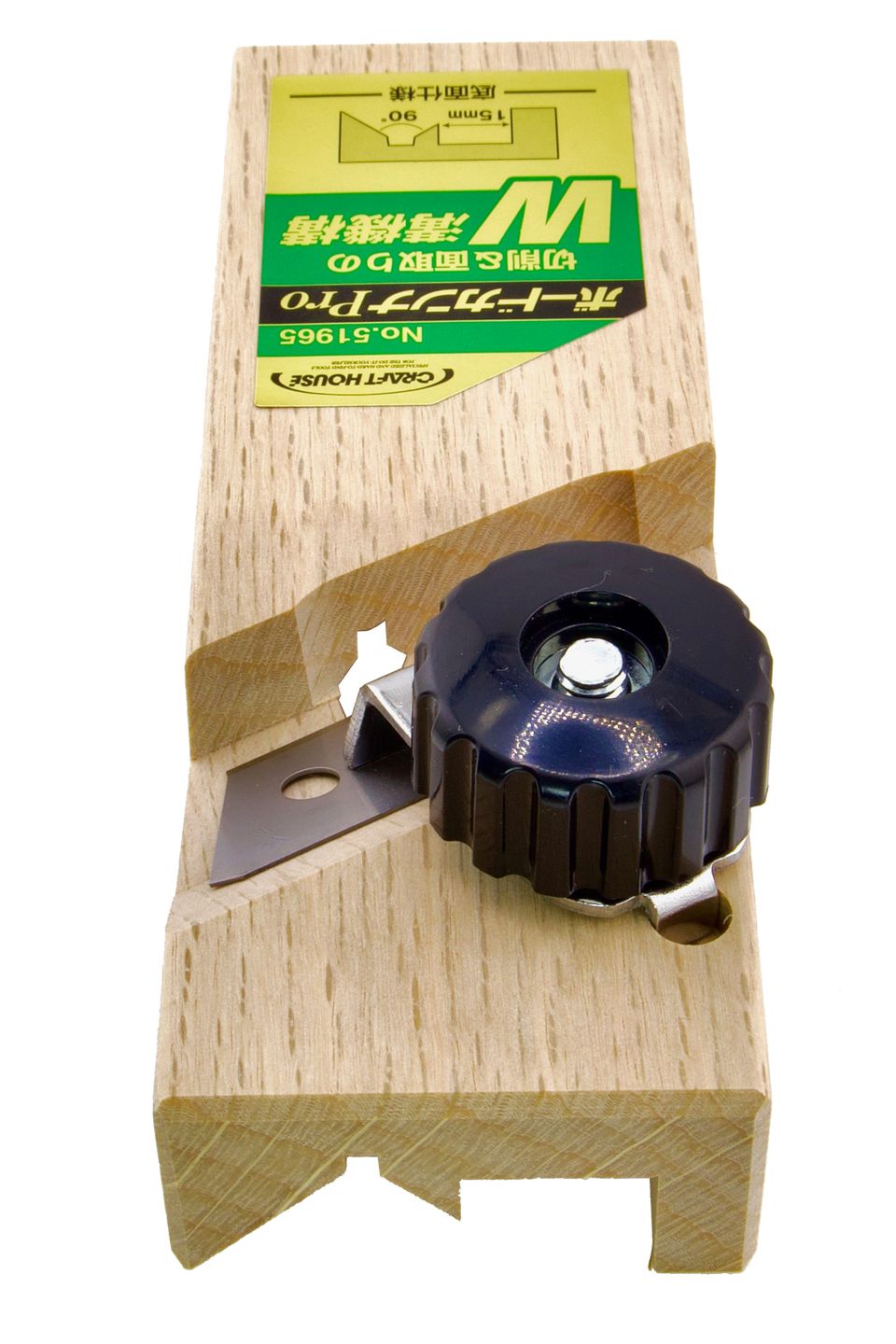

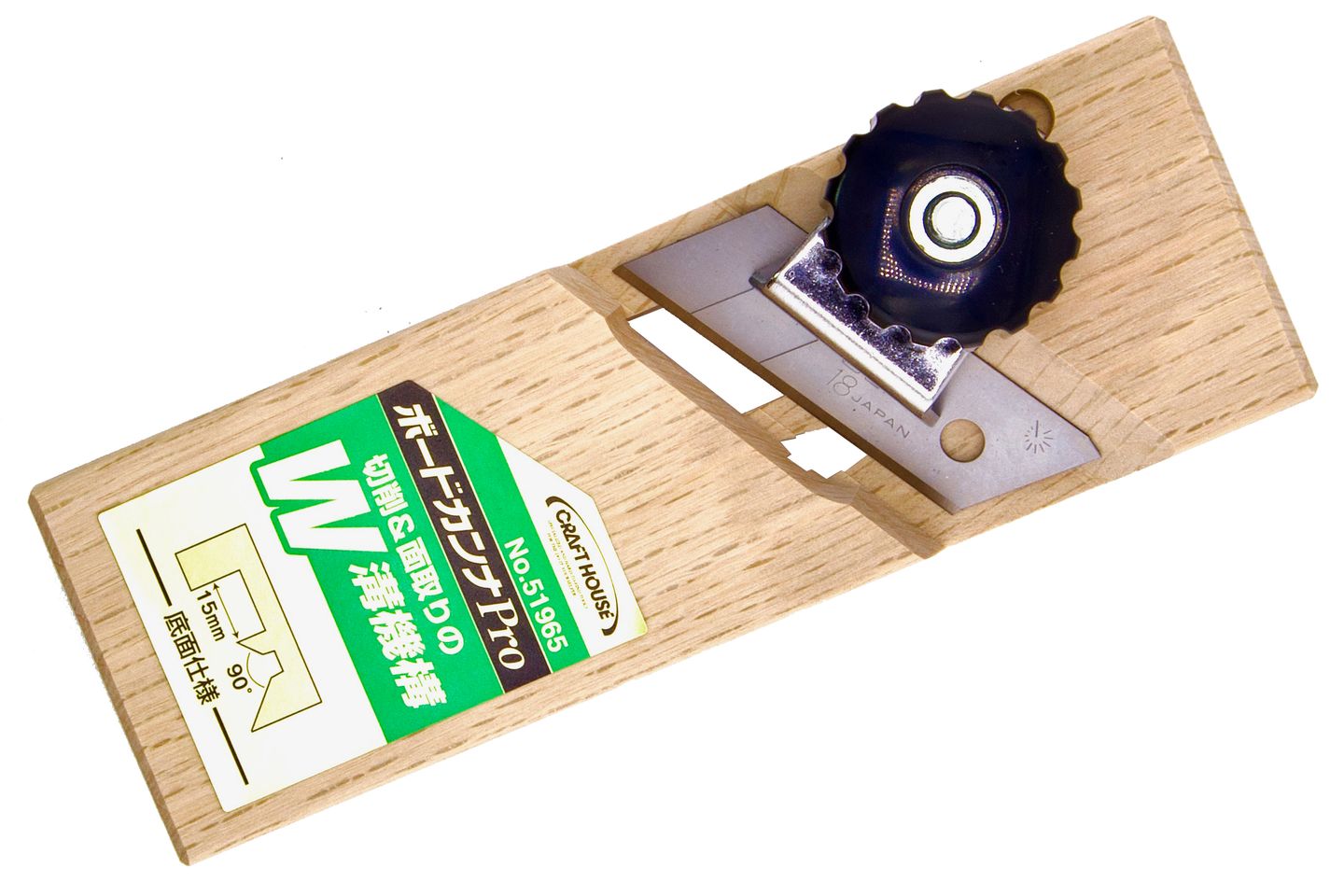

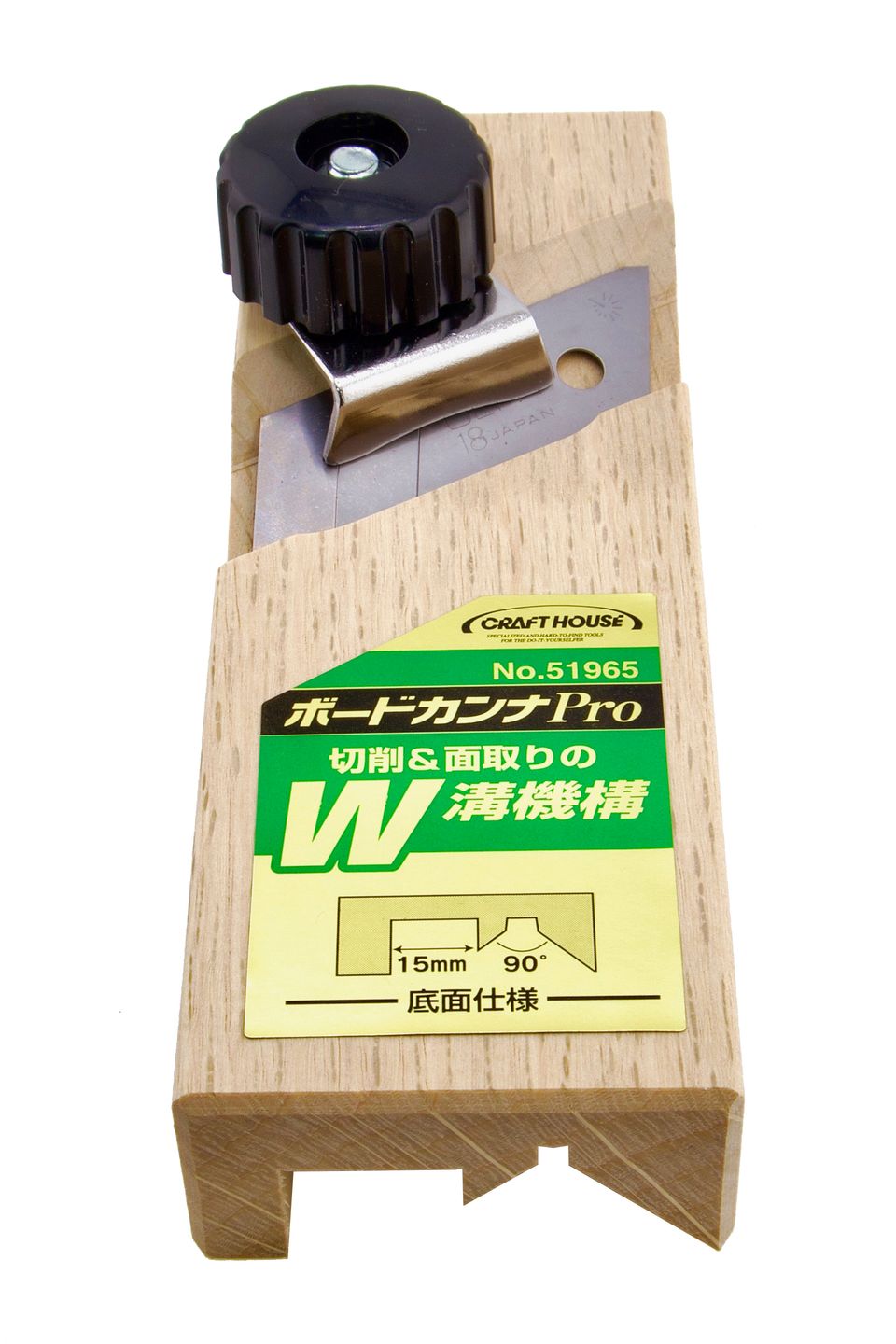

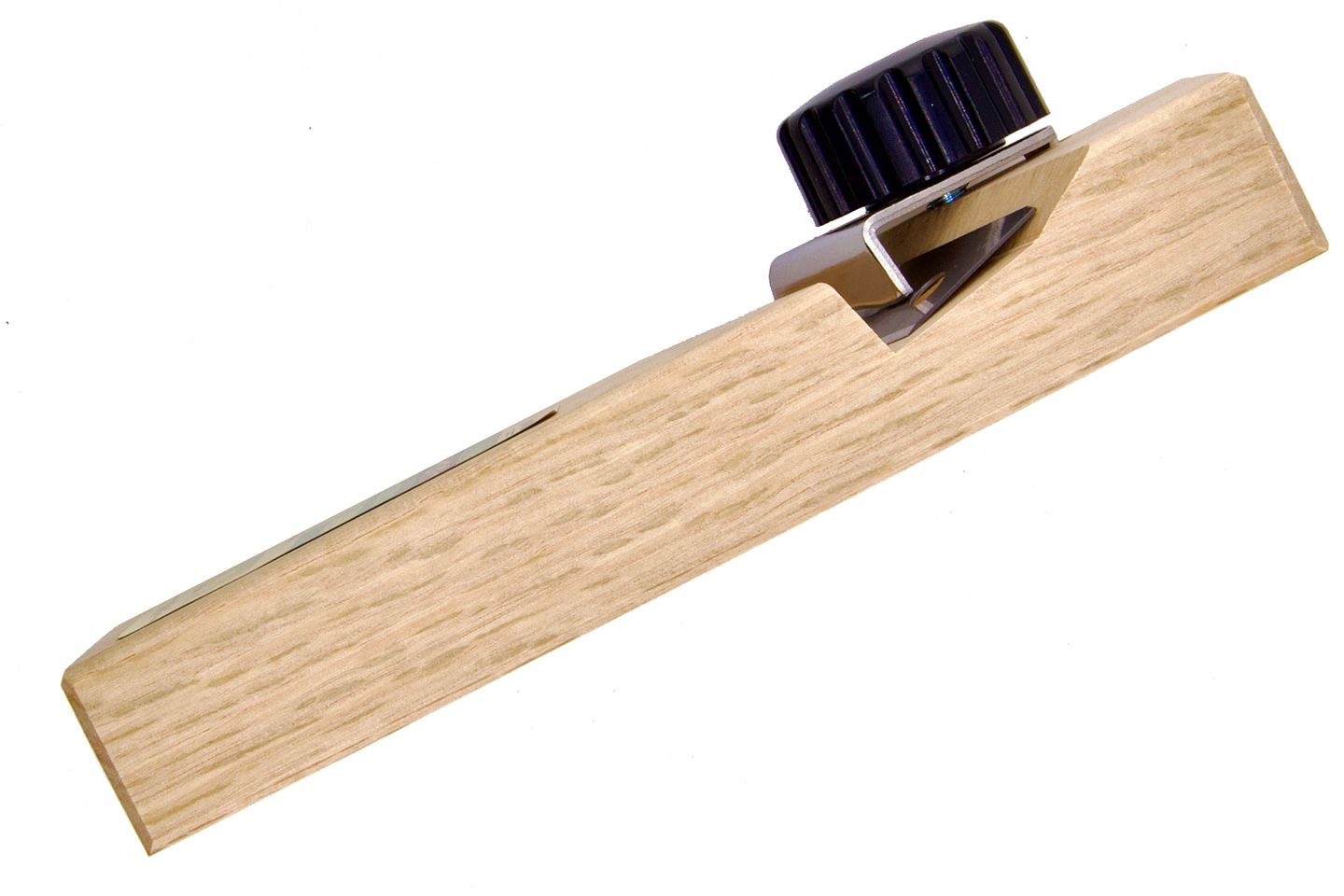

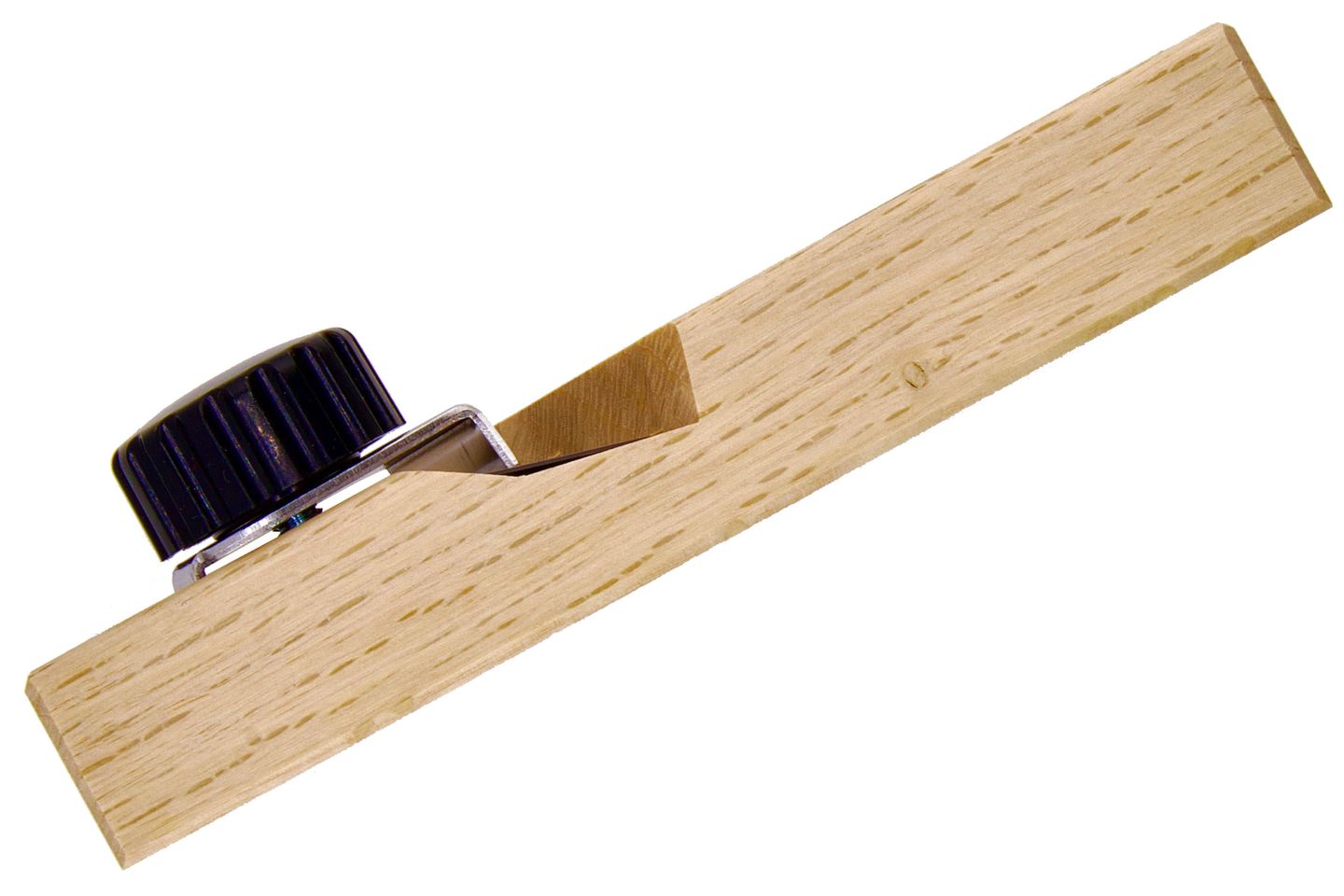

This Craft House 51965 V-Groove Chamfer Plane is a two-in-one tool that trims, bevels and shapes the edges of plasterboard, plywood, and wood panels with a utility knife blade. Compact, portable and easy to operate, it provides dual cutting functionality to handle both surface edge trimming and corner chamfering in a single tool.

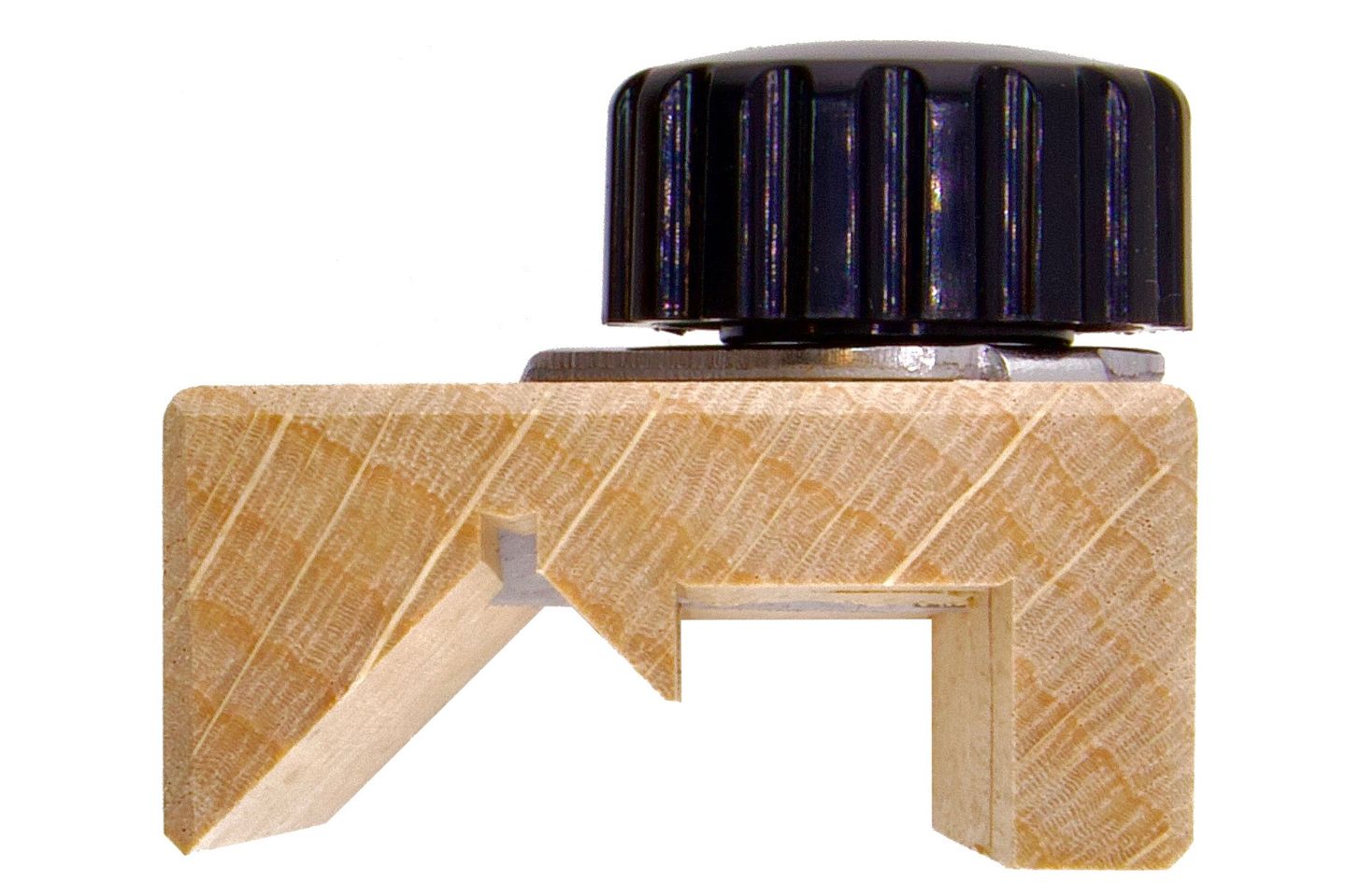

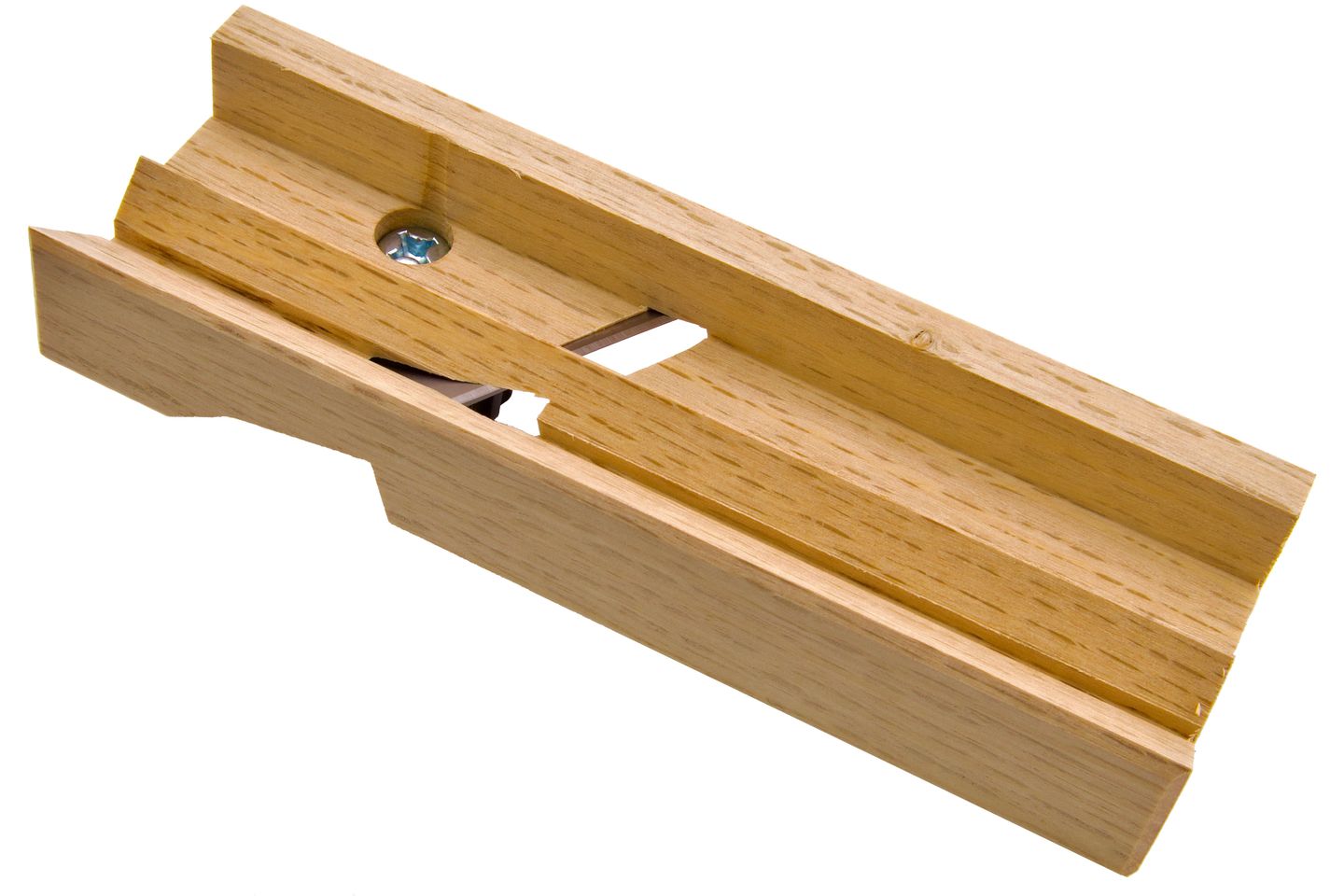

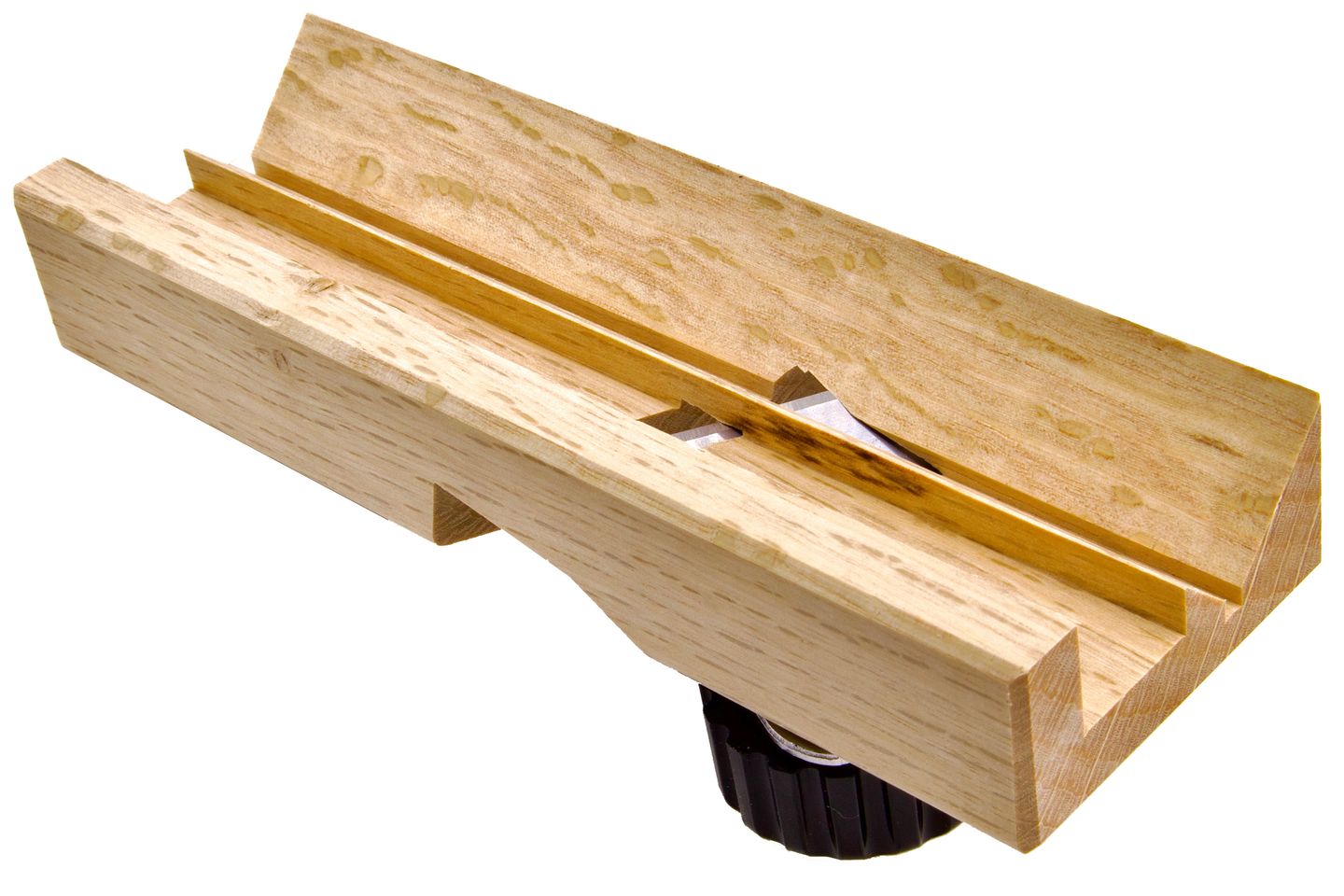

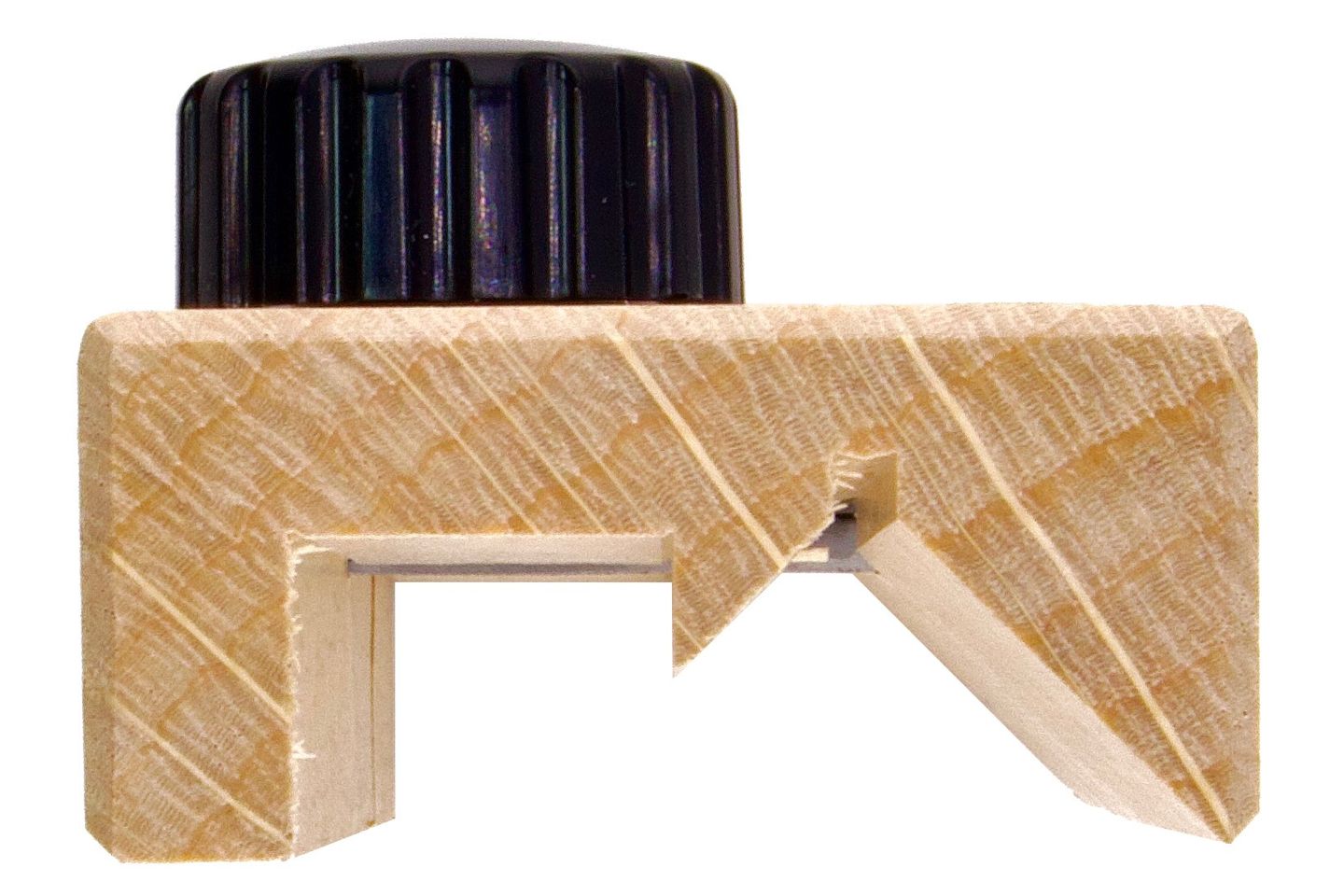

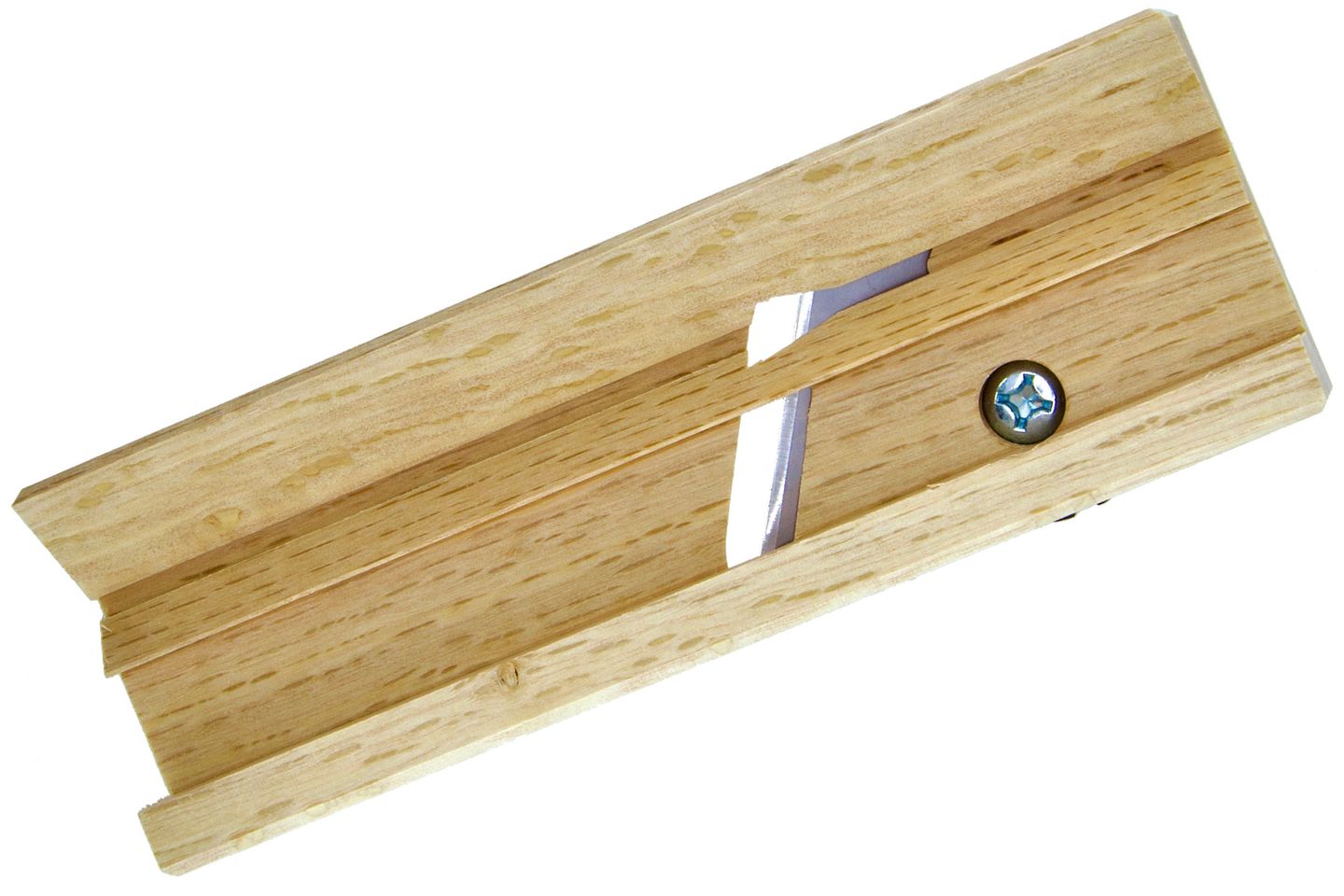

This plane features two integrated cutting channels that serve distinct purposes. One channel is flat and is used for trimming straight edge surfaces. The other is a 90° V-groove that wraps around corner edges to cut a bevel. Use the flat channel to remove thin layers from edges of panels or boards. For chamfering, guide the tool’s V-groove along the corner of the material to create consistent angled bevels. This separation of cutting functions ensures accurate results for each task without tool changes.
Product Data:
• Approximate Dimensions: W: 50mm, H: 25mm L:145mm
• Blade Type: Utility knife blade (snap-off style)
• Material: Wood body with ABS and steel components
• Flat channel width: 15mm
• Chamfering blade width: 2.5mm
• Suitable Edge Angle: 90 degrees
• Weight: Approx. 95g

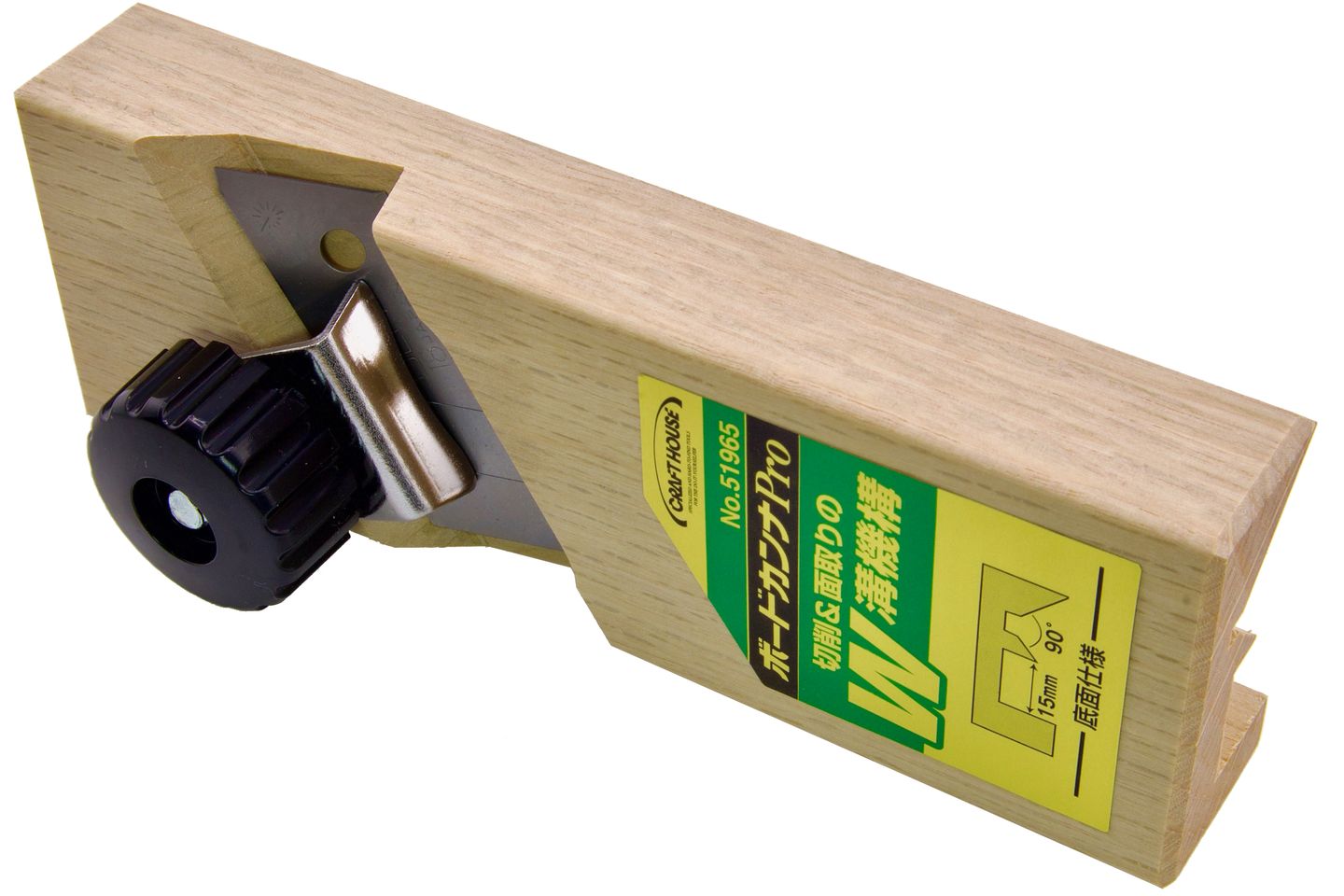

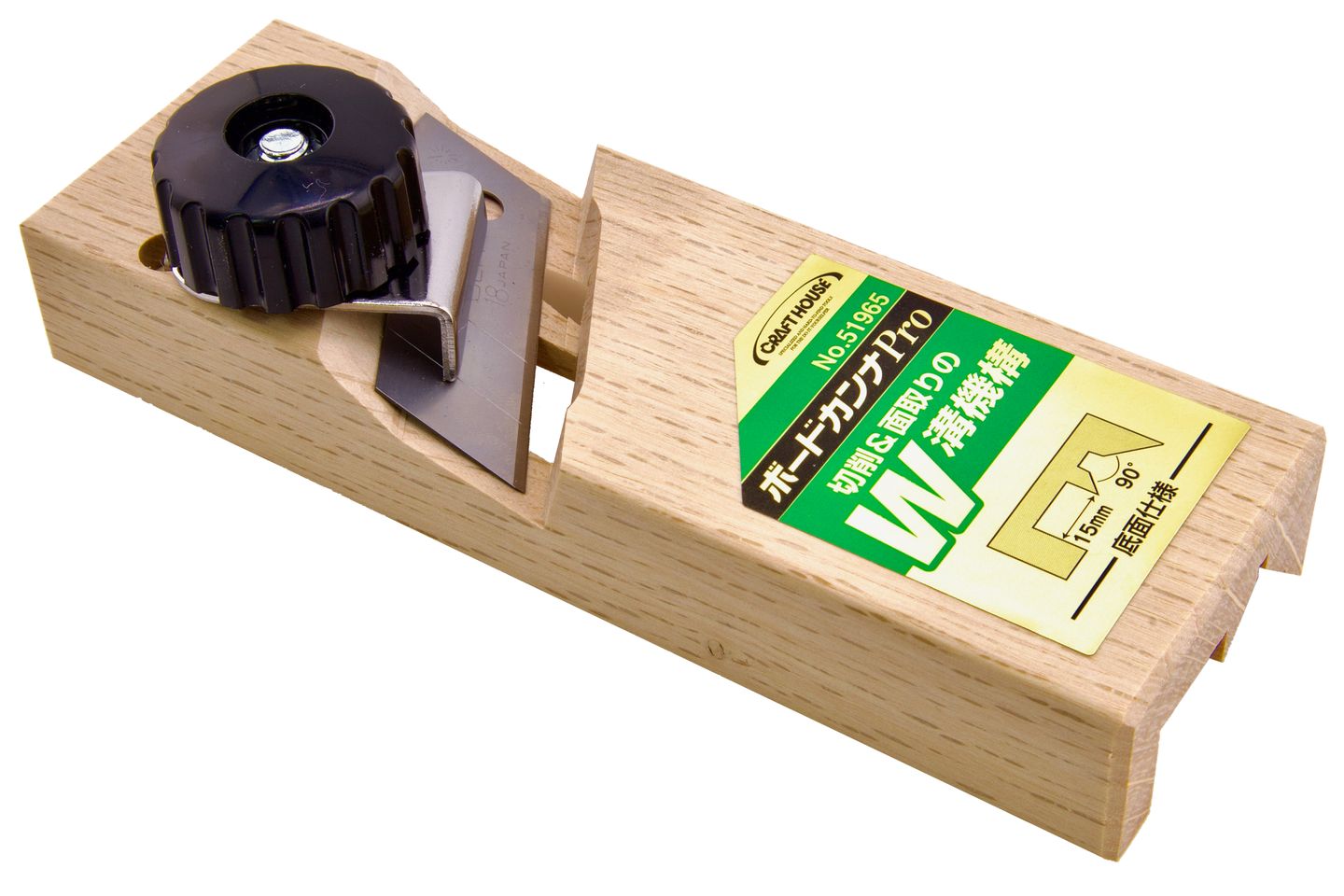

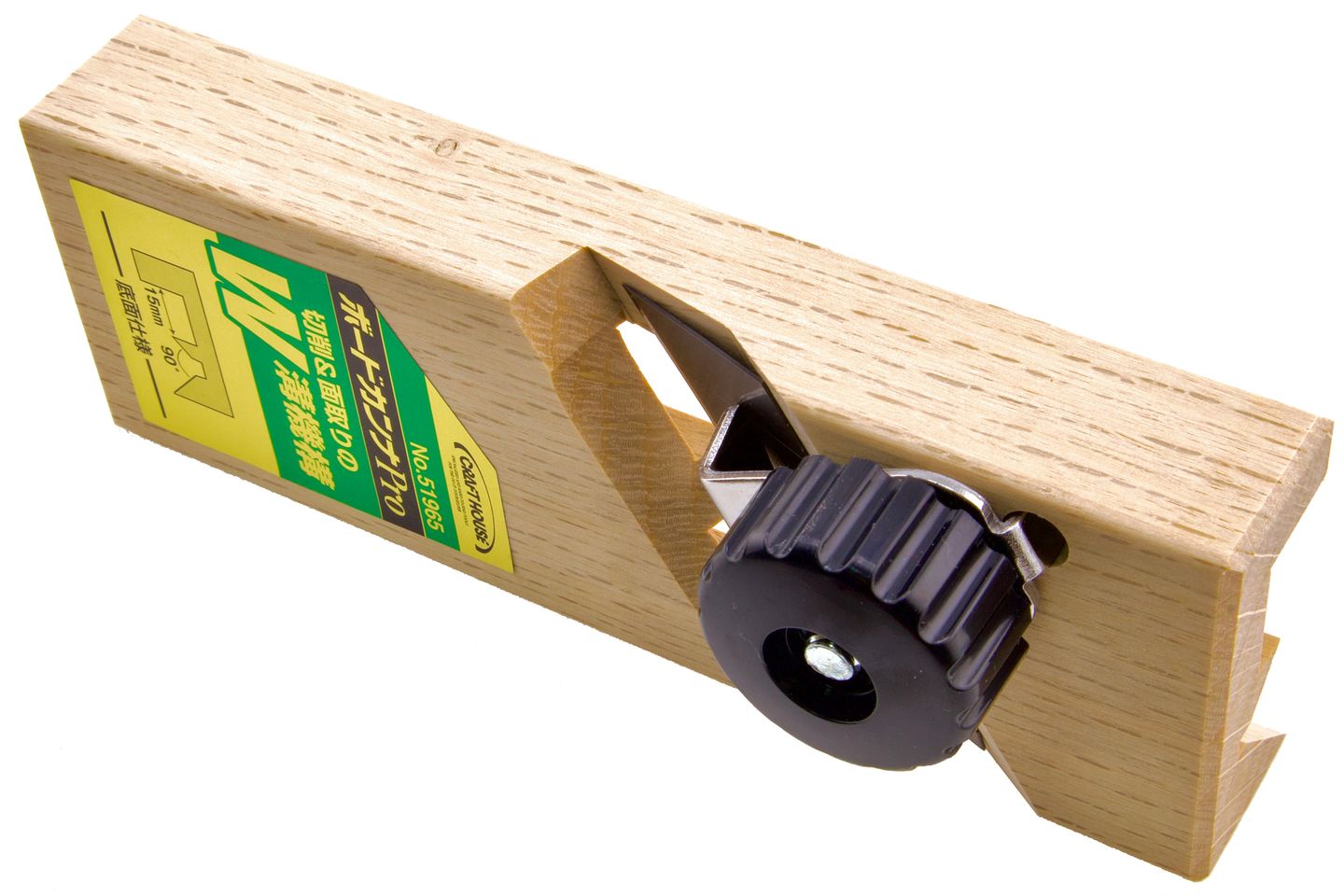

To shave flat edges, place the tool’s base against the panel surface and pull steadily using the straight guide. For chamfering, position the V-groove along the panel’s corner and draw the tool in a smooth line to form the bevel. Always adjust blade depth using the screw knob and keep the blade tight before operation.
After use, clean and dry the tool, and oil the blade if rust appears. Store safely away from children. Always wear gloves and avoid contact with the exposed blade.
Technical characteristic | Value |
---|---|
Item ID | 44866 |
Condition | New |
Manufacturer | Craft House |
Manufacturing country | Japan |
Net weight | 95 g |
Weight | 195 g |
Dimensions | 145×50×25mm |
Customs tariff number | 8205.40 |
JAN Code: 4979717519654
