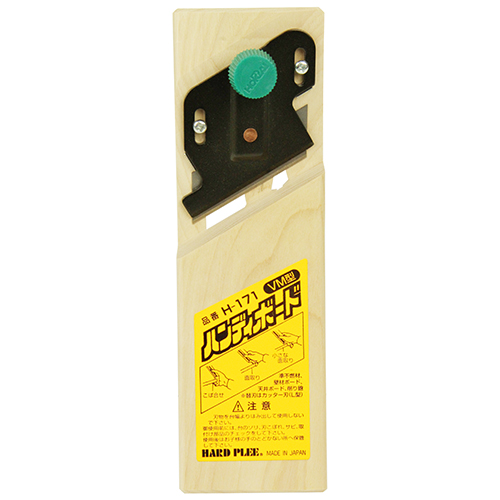

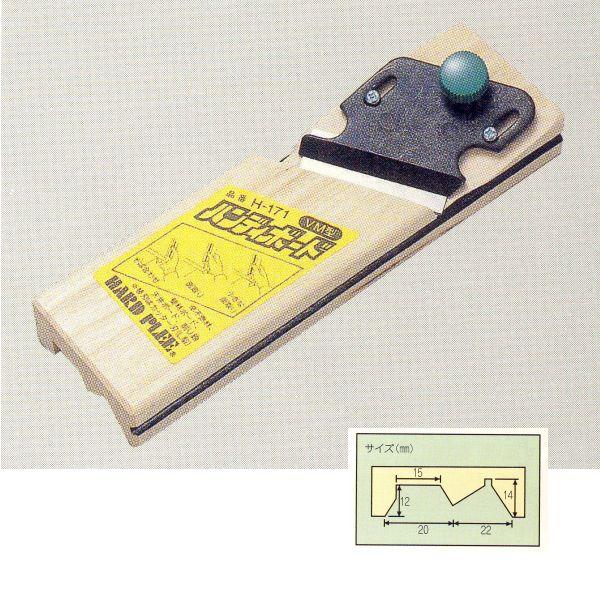

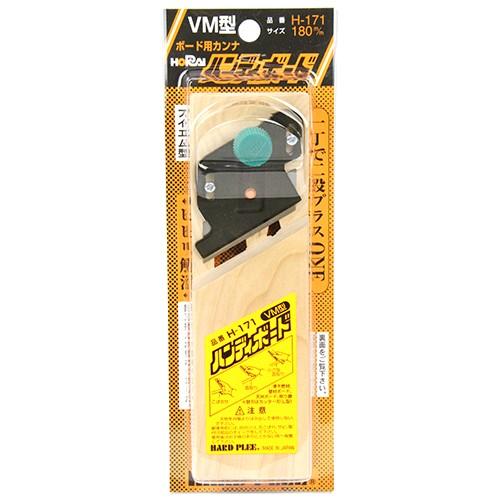

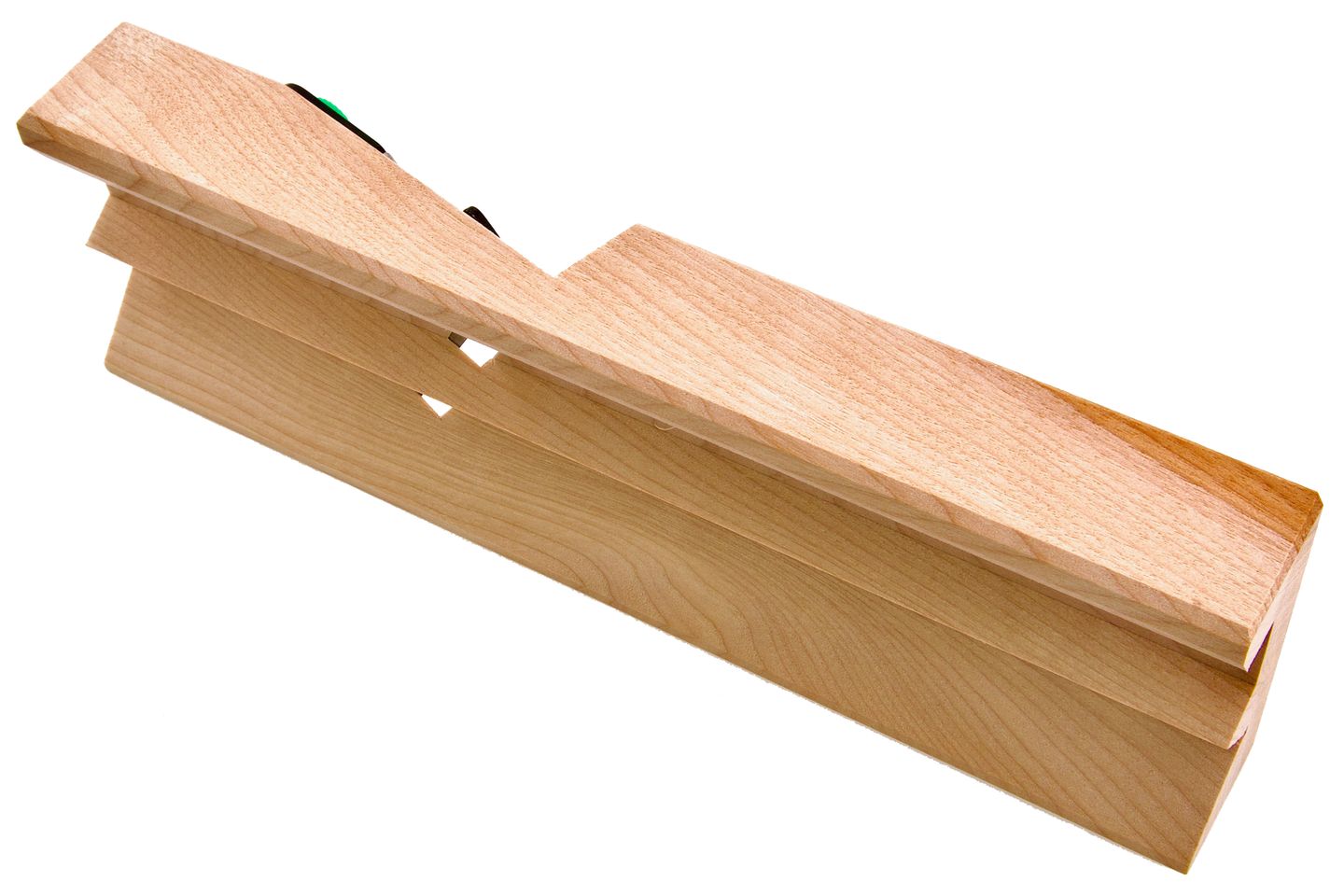

Horai H-171 Corner Plane 3-in-1 Kanna 45 90 & 30 Degree Chamfer Wood Hand Tool Carpentry Square V Channel Step Cuts Replaceable Blade
Achieve clean and consistent corner 45, 90, and 30 degree chamfers with a precision-engineered Japanese plane designed for dual channel cutting. Ideal for smooth V-grooves and stepped profiles on wood surfaces.
In stock
🔒 Secure checkout (Credit Card, Bank Transfer, & PayPal available)
✈️ Get your order in as soon as three days*
🌏 Worldwide shipping available
💰 Save on shipping when you buy multiple items

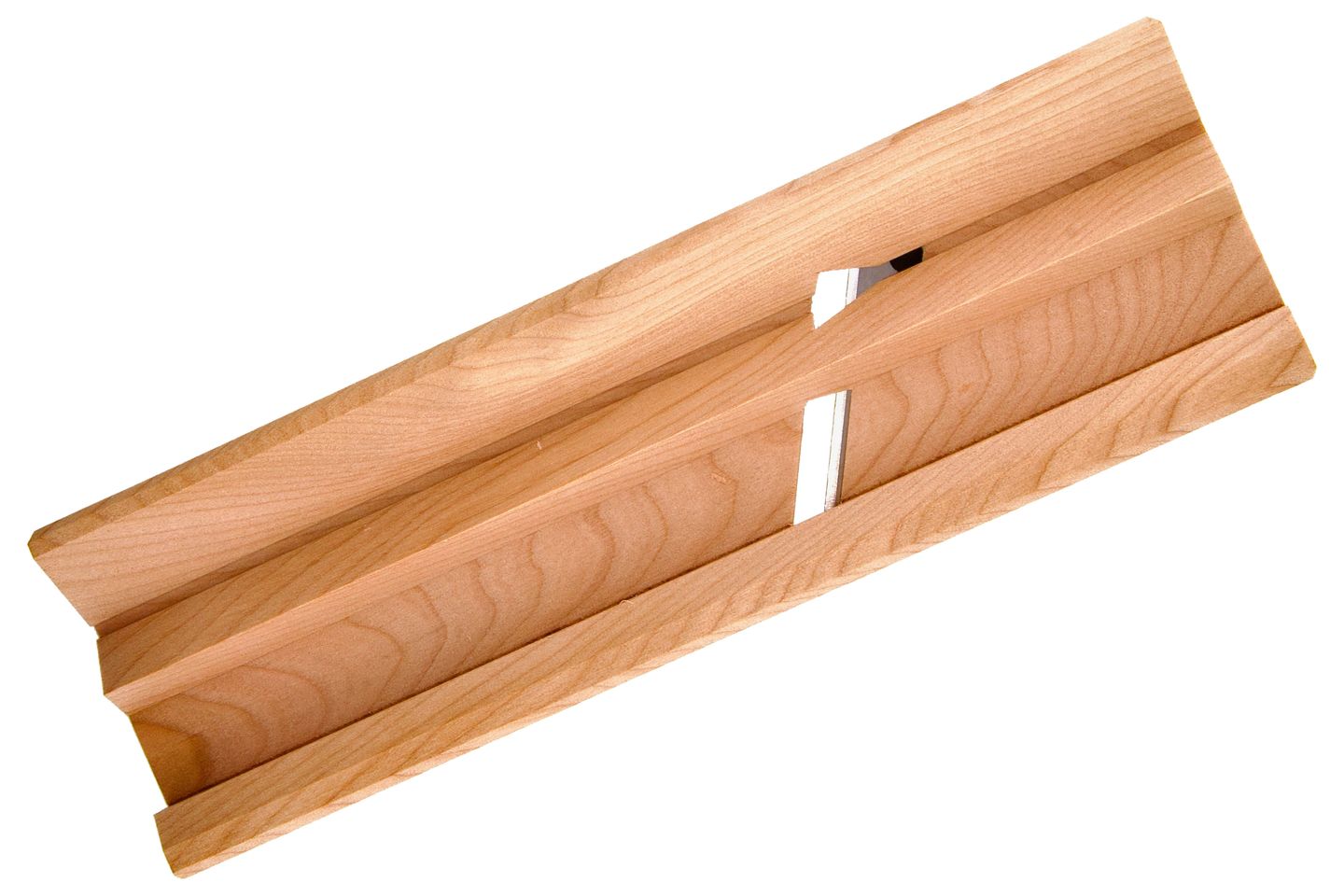

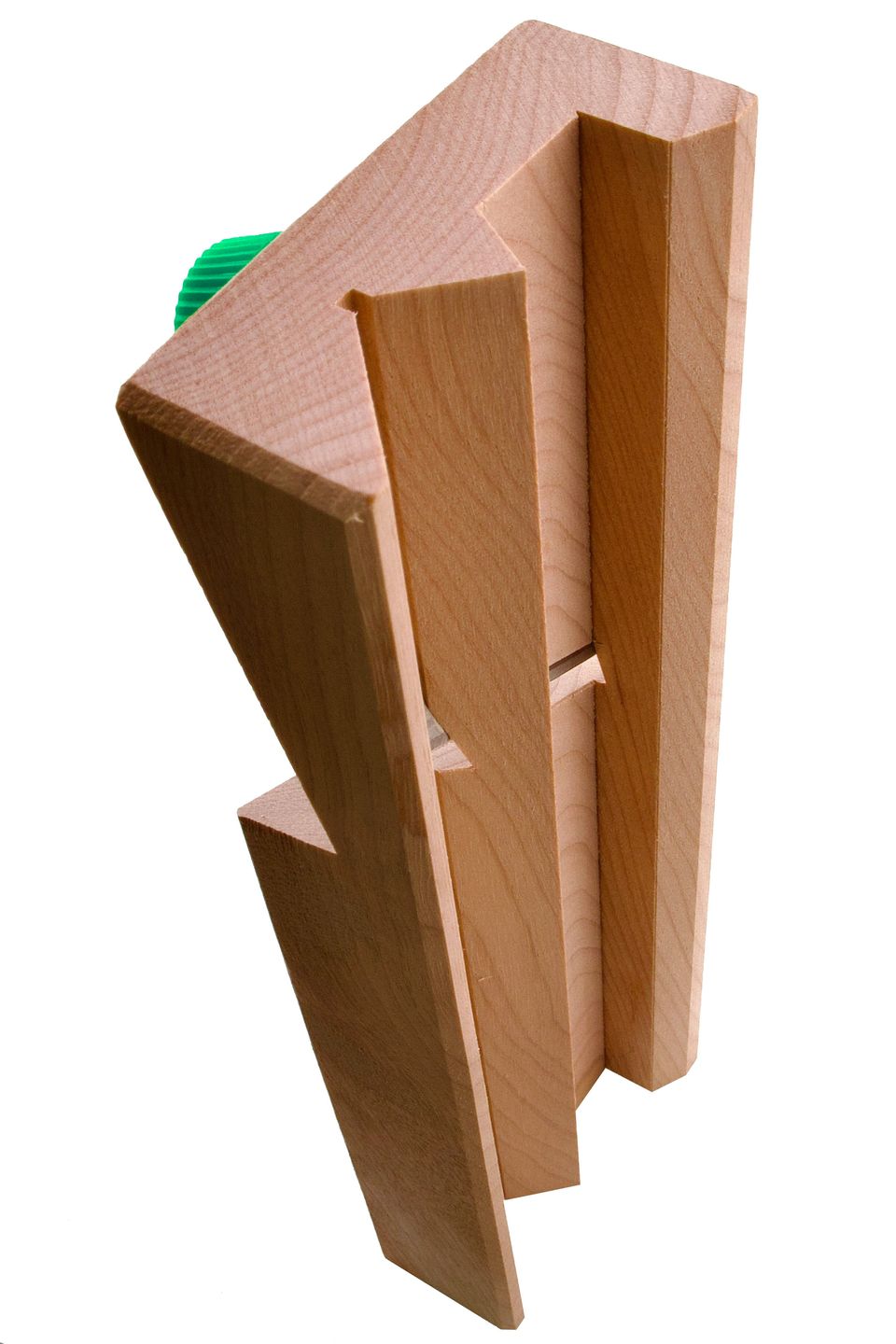

This Horai H-171 Dual Channel Corner Plane is a 3-in-1 professional-grade Japanese woodworking tool designed to deliver exact chamfers and grooves with minimal effort. Featuring a dual-channel design, it allows users to produce both symmetrical V-grooves and stepped edges in one efficient package. Its robust build and sharp blade ensure clean finishes, especially on particle board, and softwood panels.
This tool combines three essential chamfering functions into a single, compact device, allowing you to handle a wide range of finishing and fitting tasks without changing tools. Whether you’re working with gypsum board, cement board, or fire-resistant wall and ceiling panels, this tool gives you the control and flexibility to deliver flawless edges every time.
• 45° Chamfer – Clean Bevelling for Professional Joins:
Create precise, 45-degree beveled edges to ensure clean and seamless joints between boards. This is especially useful for mitered corners, angled joins, or any application where two panels meet at an angle. The 45° chamfer helps reduce visible seams and enhances the overall appearance of your work by creating a smooth, unified finish. Ideal for decorative finishes, edge treatment in drywall installation, or preparing panels for corner joints.
• 90° Edge Alignment – Accurate, Flush Board Connections
Use the tool to square off board edges at a perfect 90 degrees, ensuring they sit flush against adjacent surfaces. This function is perfect for creating precise right-angle connections between walls, ceilings, or panels. It improves the structural integrity of your assemblies while eliminating the need for excessive filling or sanding. A true time-saver for drywallers, builders, and renovators seeking sharp, consistent edges and perfect fits.
• 30° Light Chamfer – Smooth, Subtle Edge Finishing
Refine your work with a light 30-degree chamfer that removes just enough material to soften sharp edges and protect against chipping or splintering. This gentle beveling is ideal for areas where exposed board edges need a finished look and feel, such as corners, door frames, and furniture-grade applications. It also adds an element of safety, making the edges more user-friendly in high-traffic or touch-sensitive areas.
Product Data:
• Product Size: Width 55mm x Height 180mm x Depth 40mm
• Weight: 155g
• Model: H-171

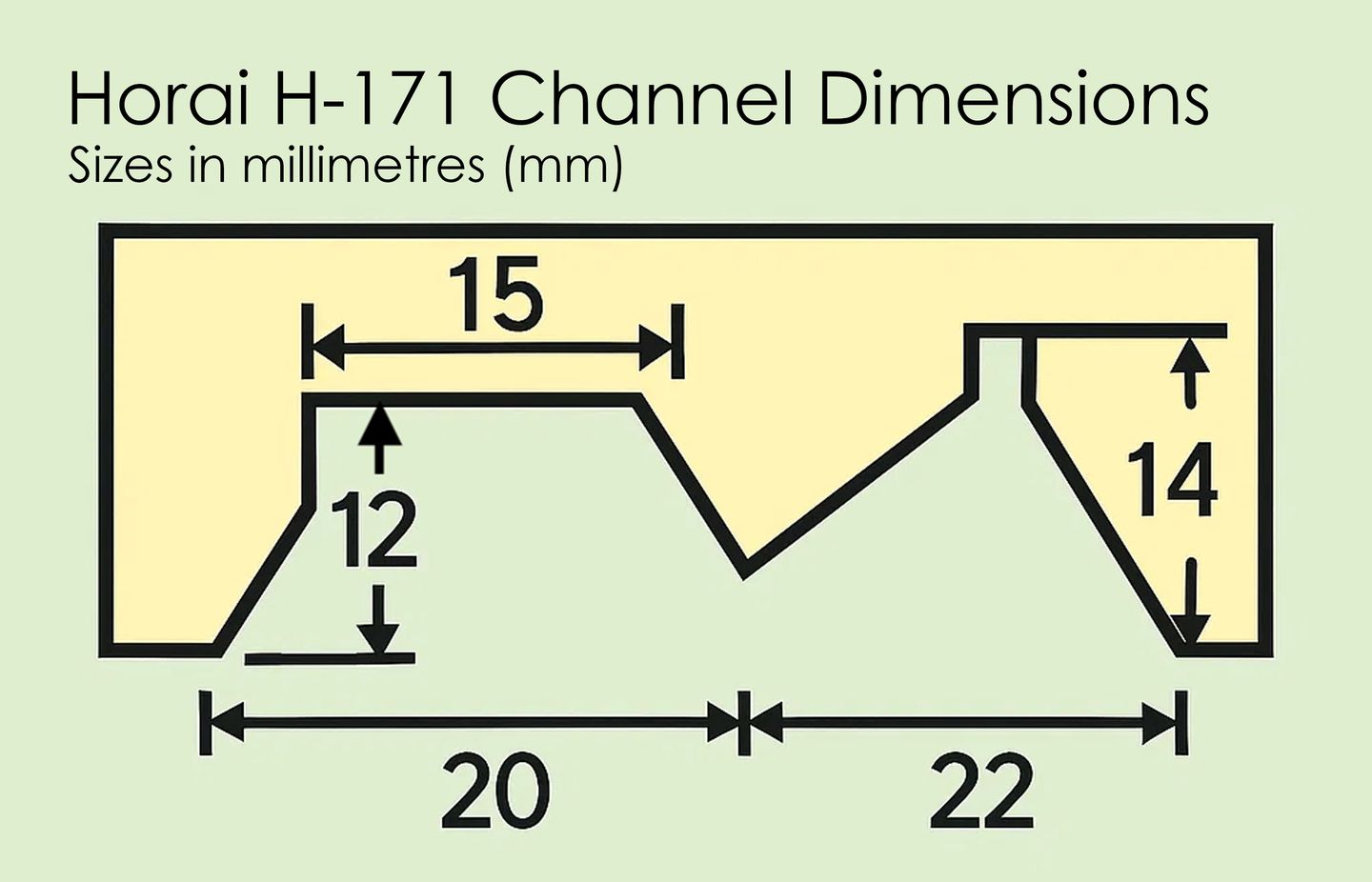

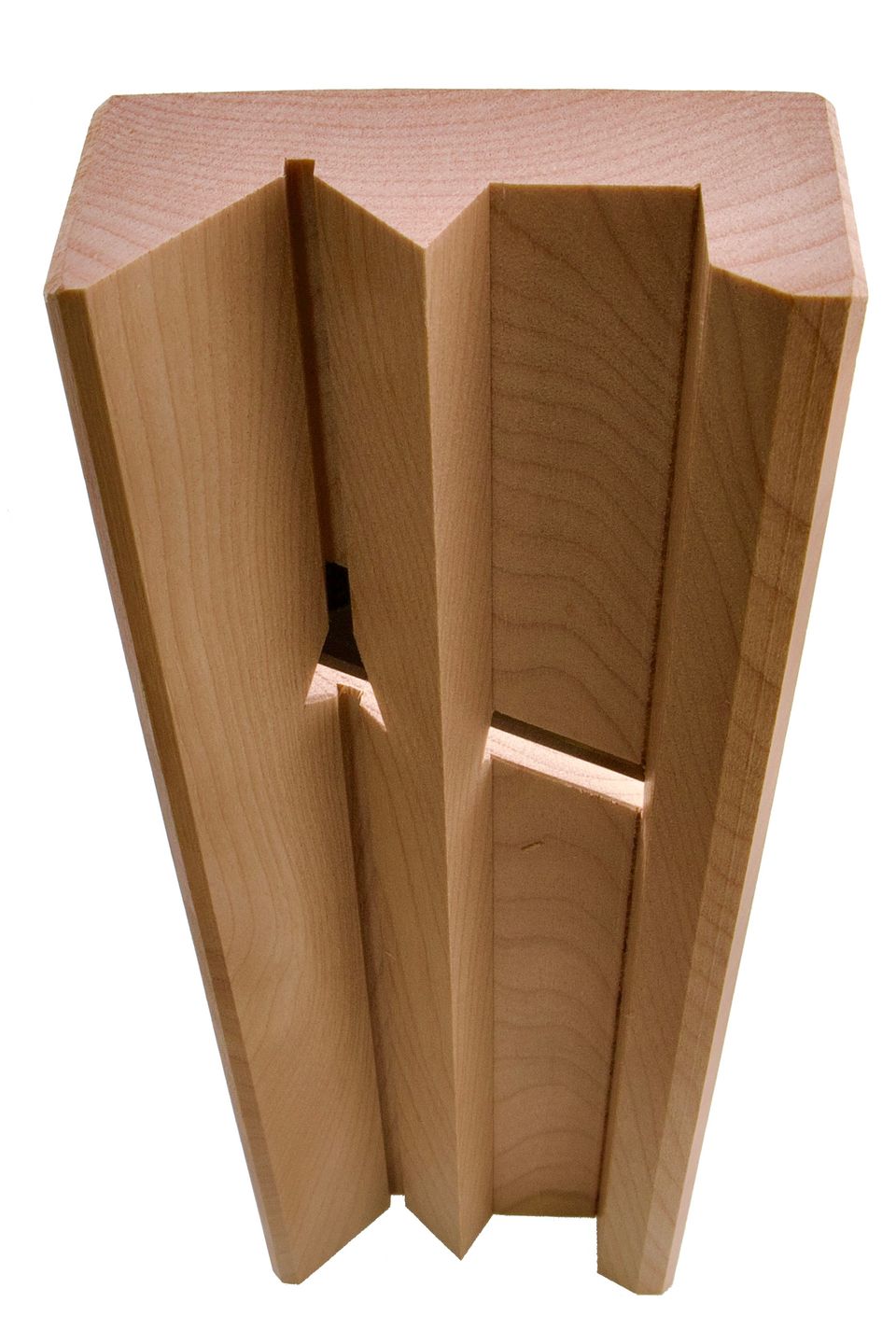

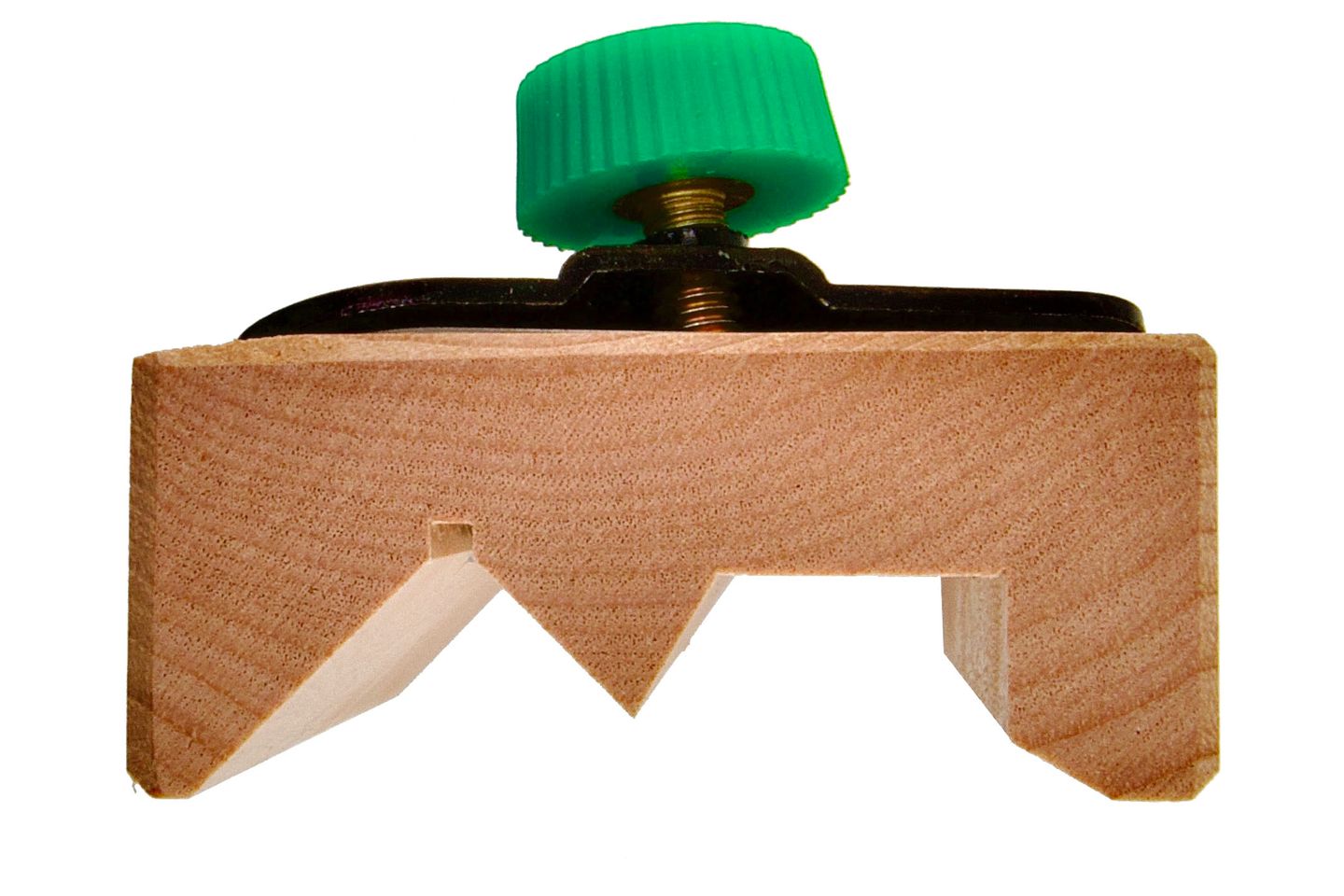

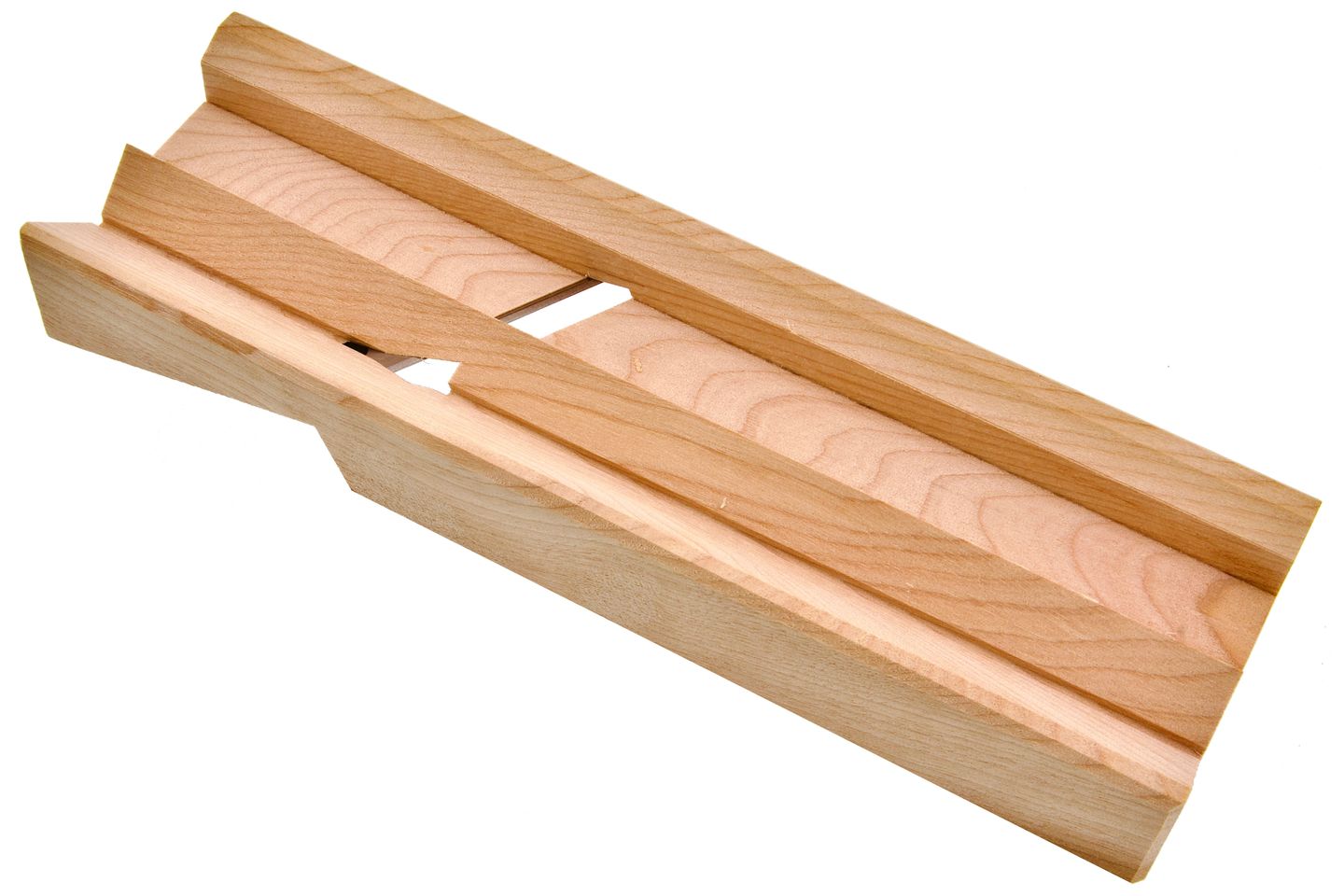

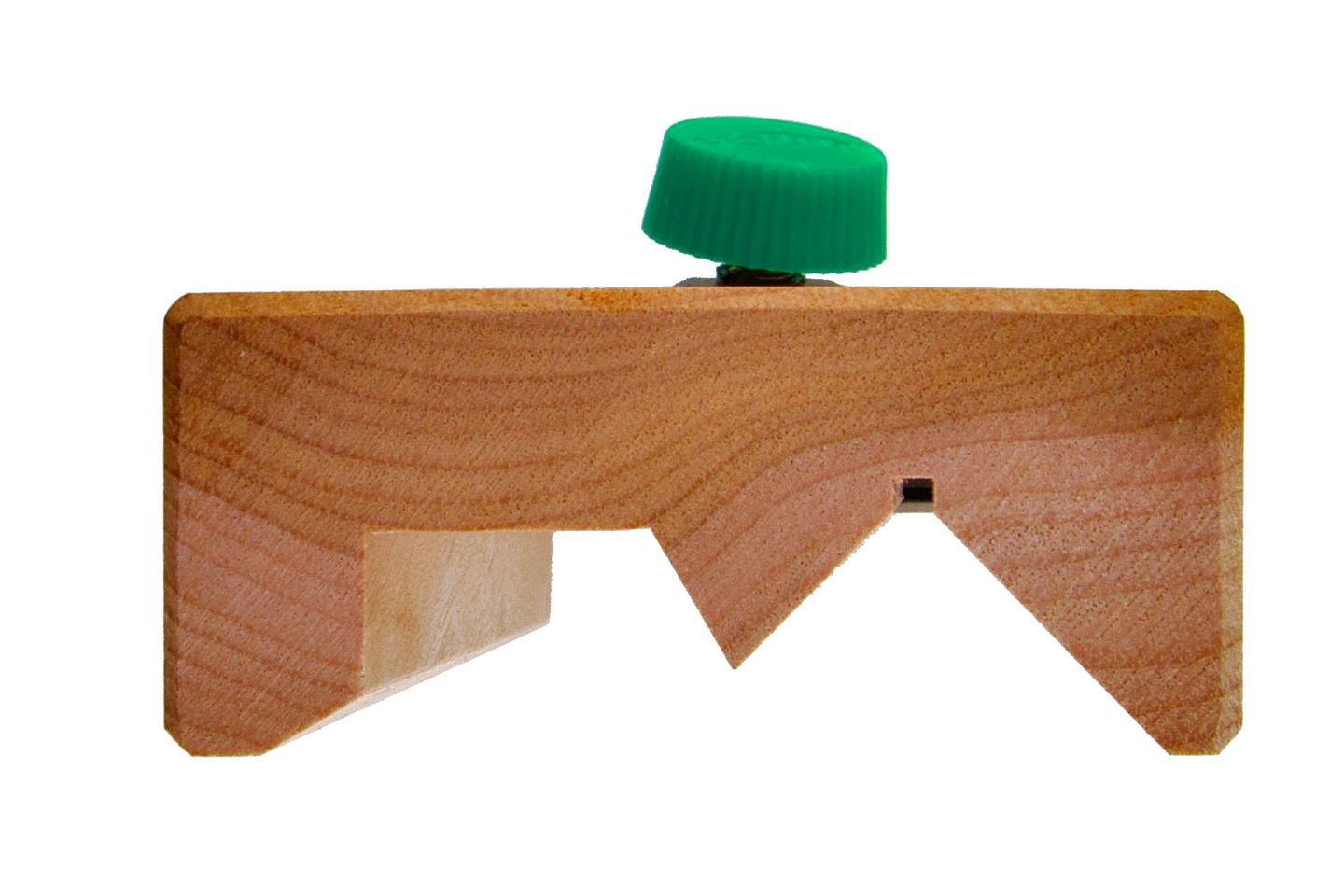

• Channel Sizes: 20mm width × 12mm depth (V-groove), 22mm width × 14mm depth (step)
• Blade Angle: 180°
• Application: For MDF, plywood, particleboard, etc.
• Country of Origin: Japan

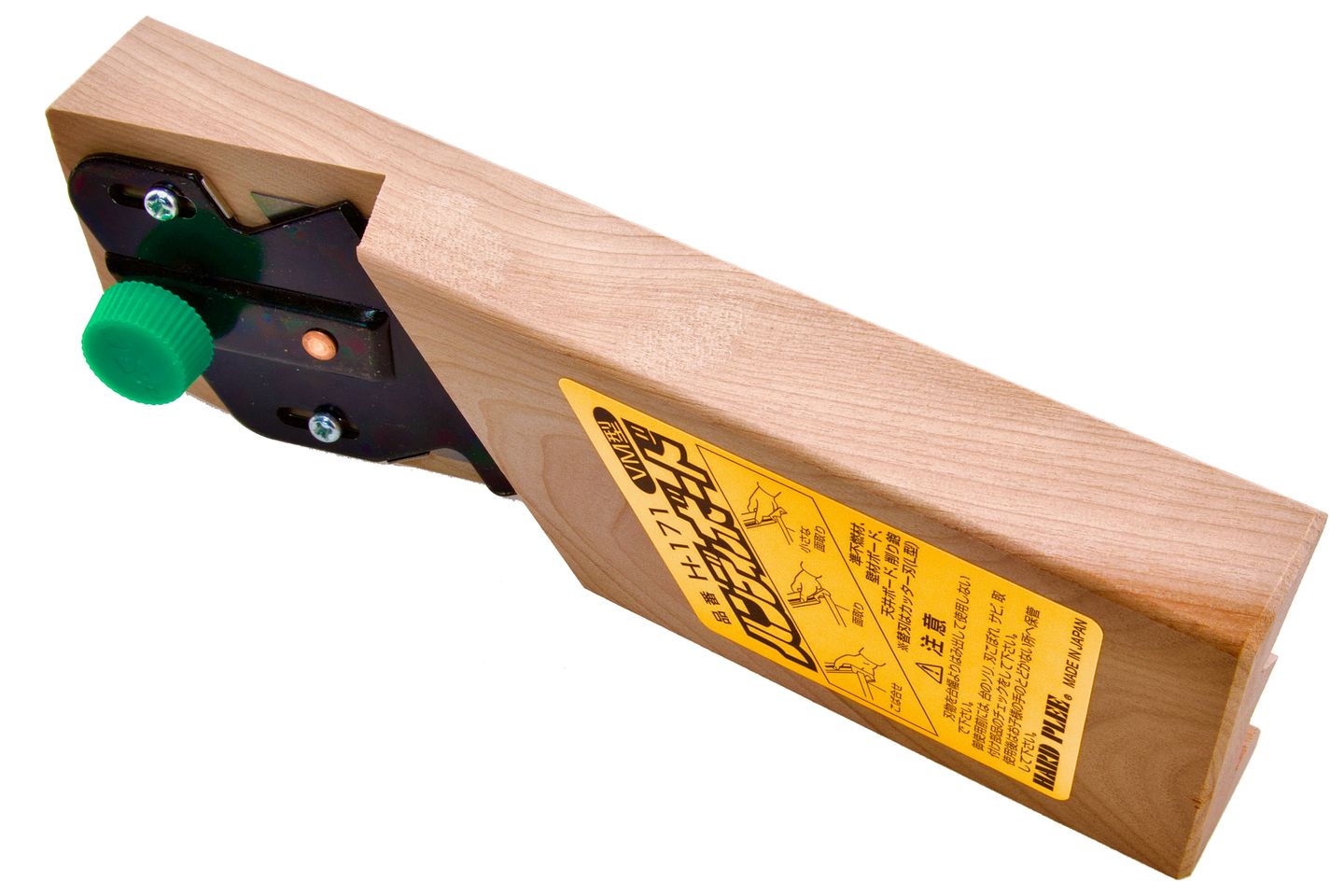

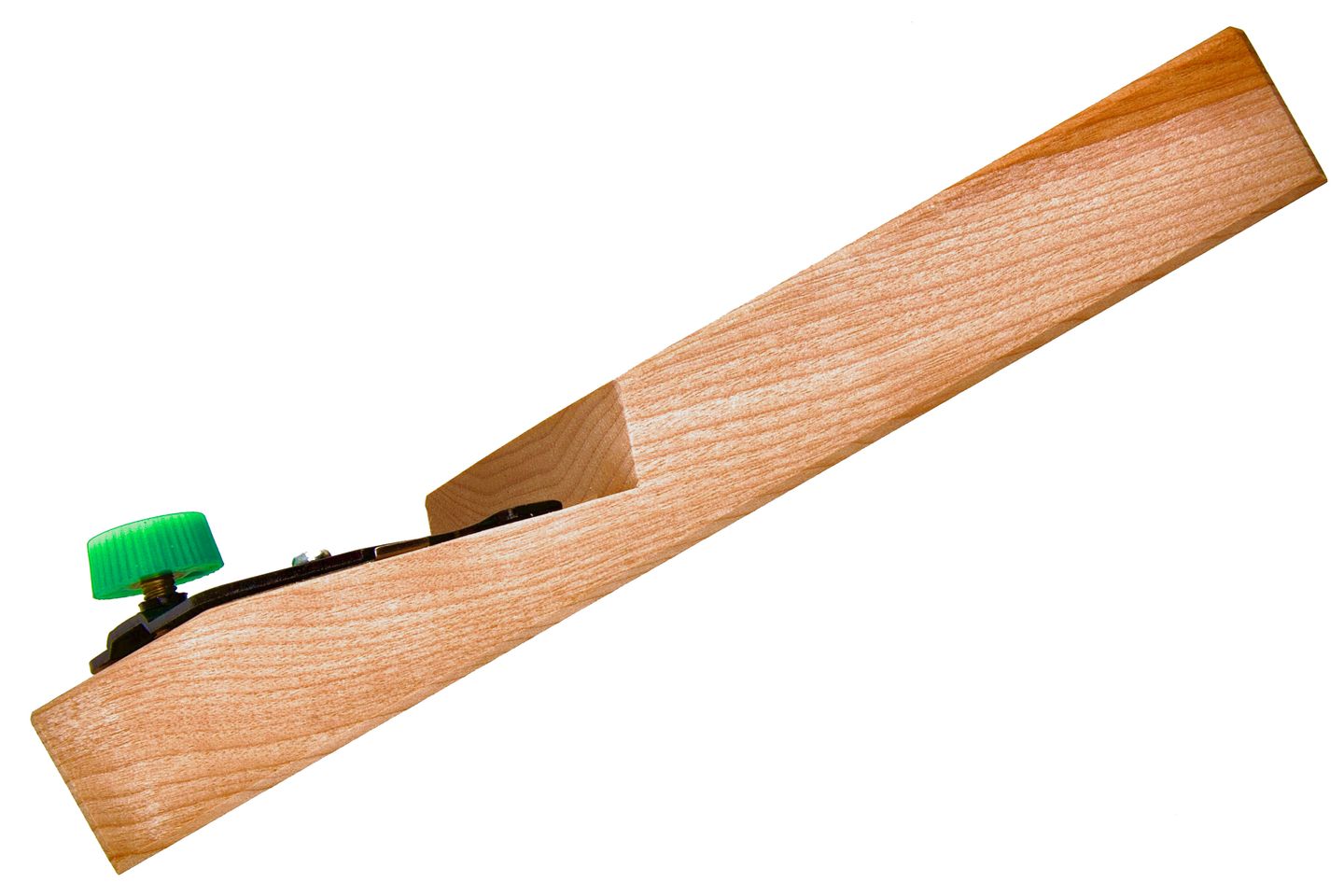

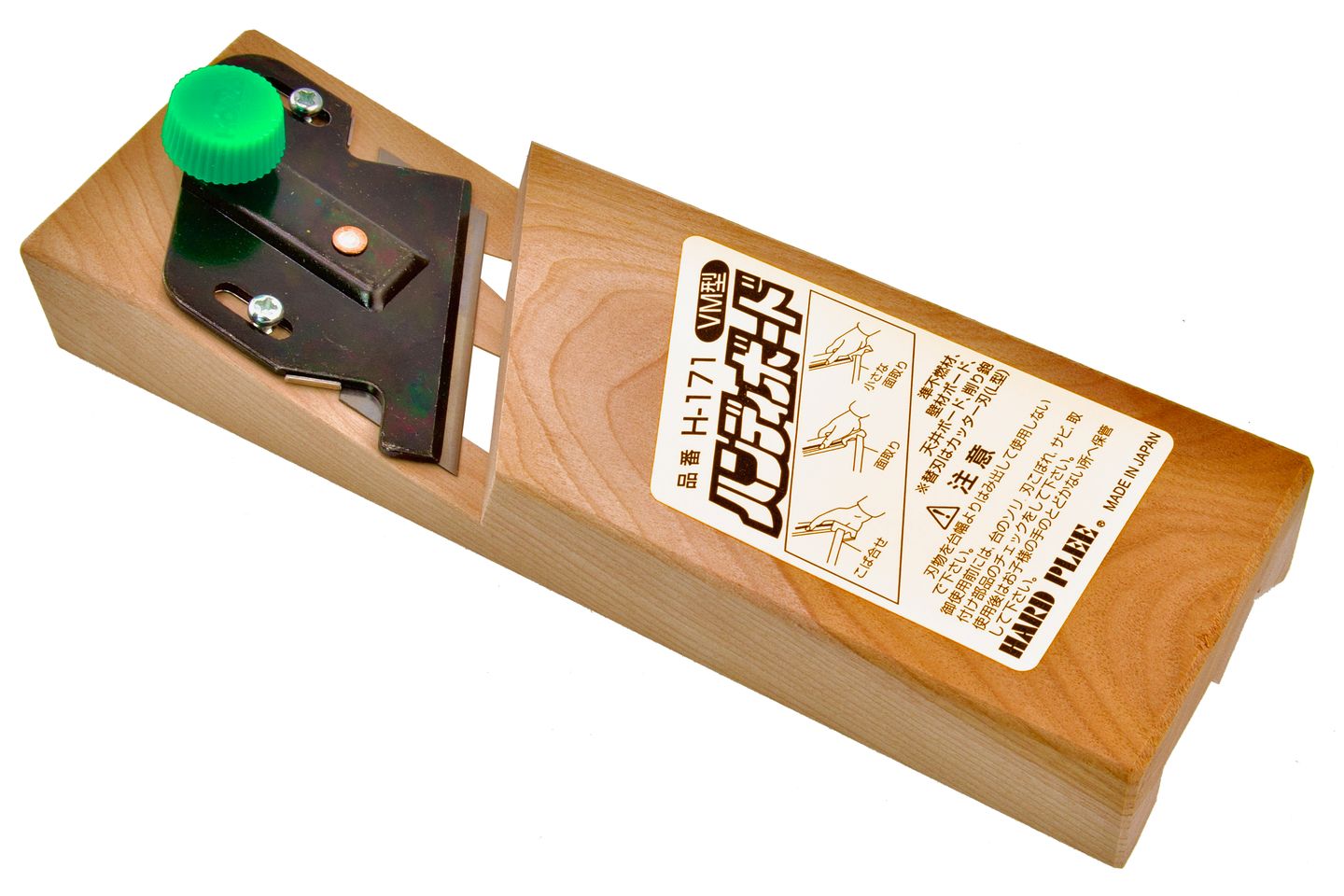

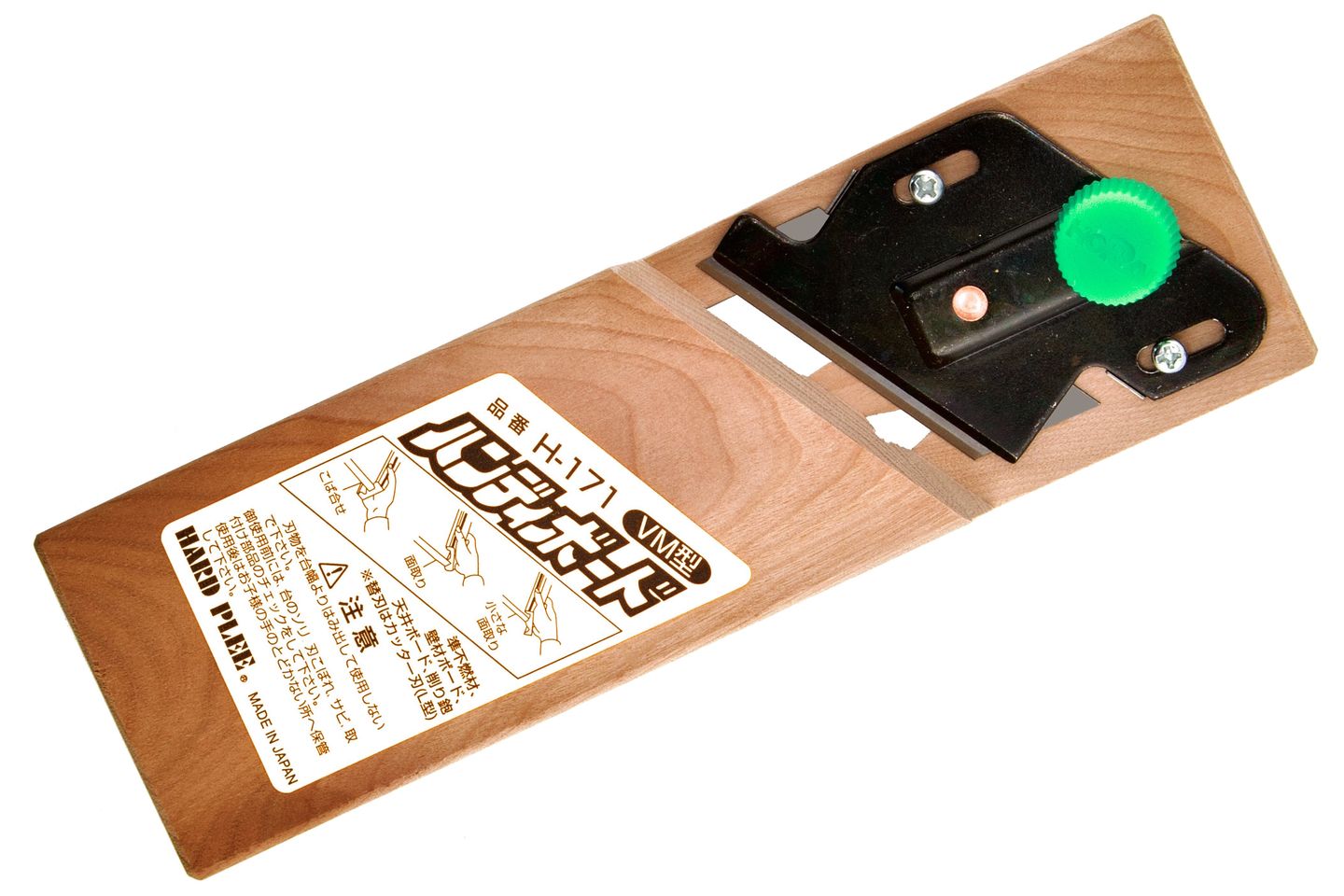

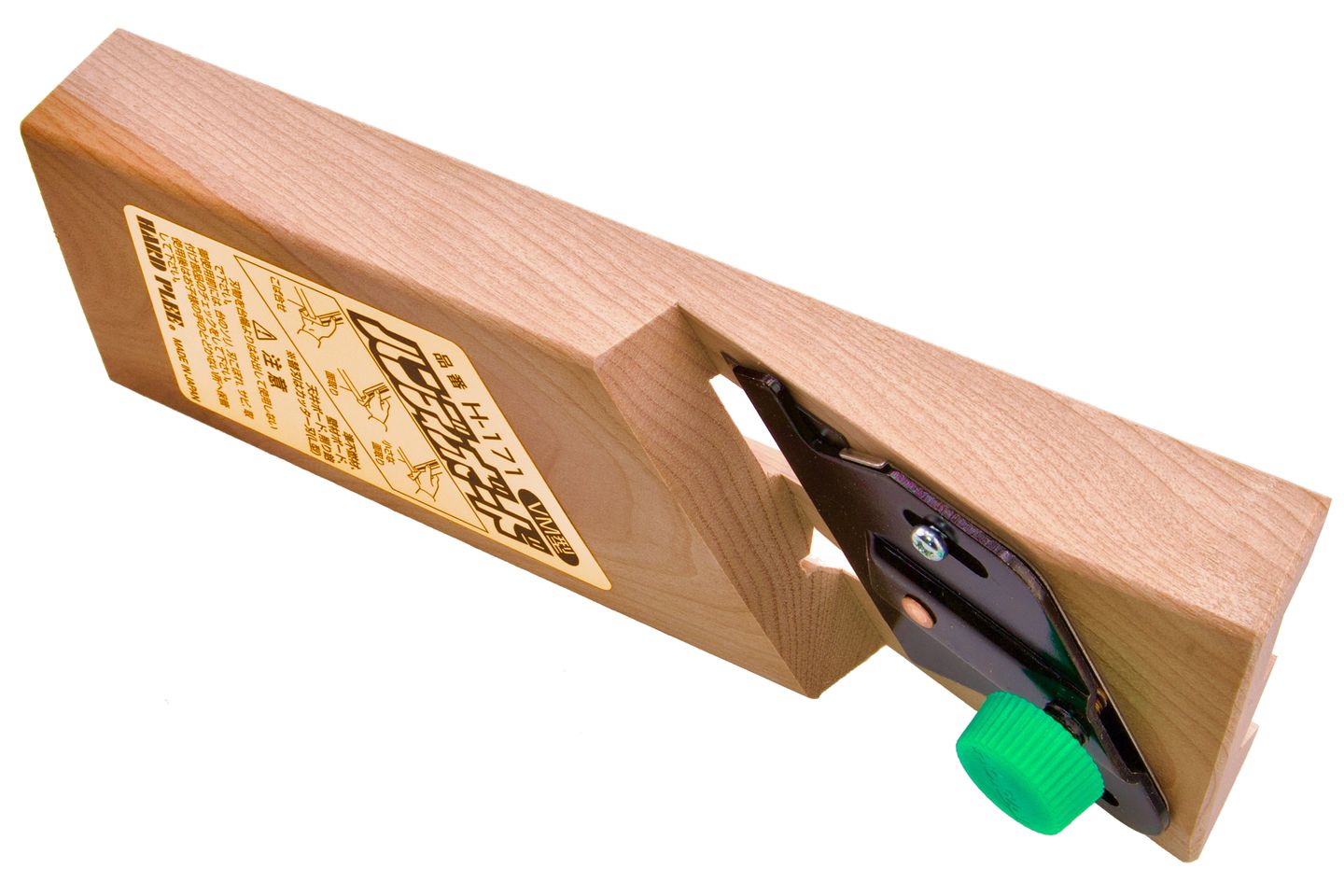

To use, adjust the green knob to set blade exposure and tighten the screw, then guide the plane firmly along the material's edge to create a smooth groove. For the V-groove, align centrally; for the stepped cut, align the edge and maintain pressure evenly. Take care to maintain control throughout to prevent blade chatter or deviation from the intended path.
After each use, remove wood debris from the channel. If used heavily, the blade may need to be gently honed. Store in a dry location to preserve the integrity of the wooden body and prevent rust on the metal parts. Always keep out of children’s reach and avoid use on non-compatible materials like hardwood or plastic to extend tool life.
| Technical characteristic | Value |
|---|---|
| Item ID | 44893 |
| Condition | New |
| Manufacturer | Horai |
| Manufacturing country | Japan |
| Net weight | 155 g |
| Weight | 255 g |
| Dimensions | 180×55×40mm |
| Customs tariff number | 820530000 |
JAN Code: 4907580001716
