Yoita Soichiro Dado Plane 18mm Woodworking Kanna SK-5 Blade Wood Rabbets Cuts Grooves for Trench Cuts Slotting Panels Joinery Grooving Applications
Designed to clean and flatten the bottom of narrow grooves in wood, offering efficient results for joinery, panel slots, and flooring work. The angled SK-5 blade allows for precise depth control and clean finishes even in hard-to-reach channels.
In stock
🔒 Secure checkout (Credit Card, Bank Transfer, & PayPal available)
✈️ Get your order in as soon as three days*
🌏 Worldwide shipping available
💰 Save on shipping when you buy multiple items

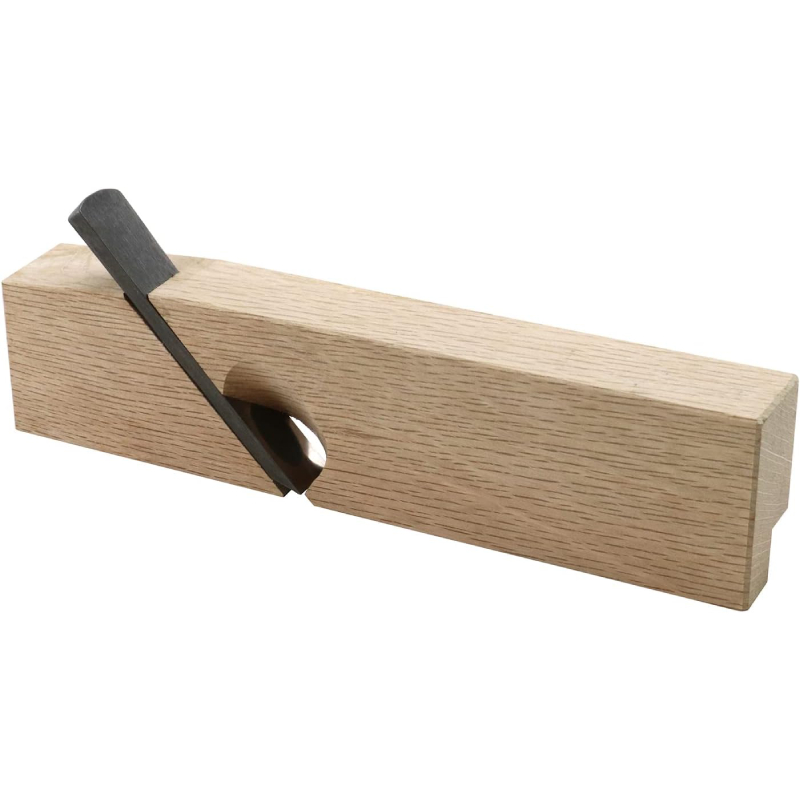

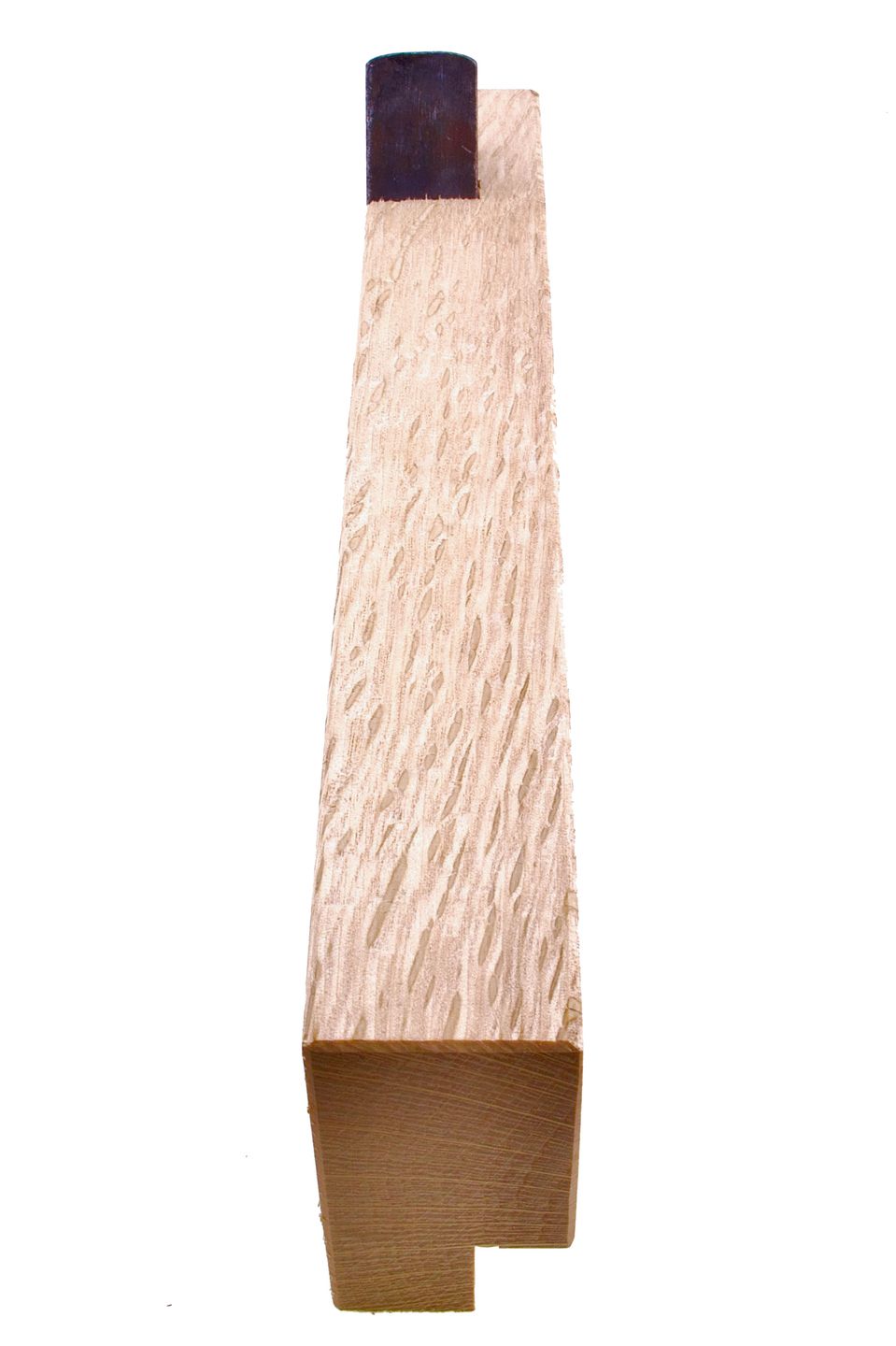

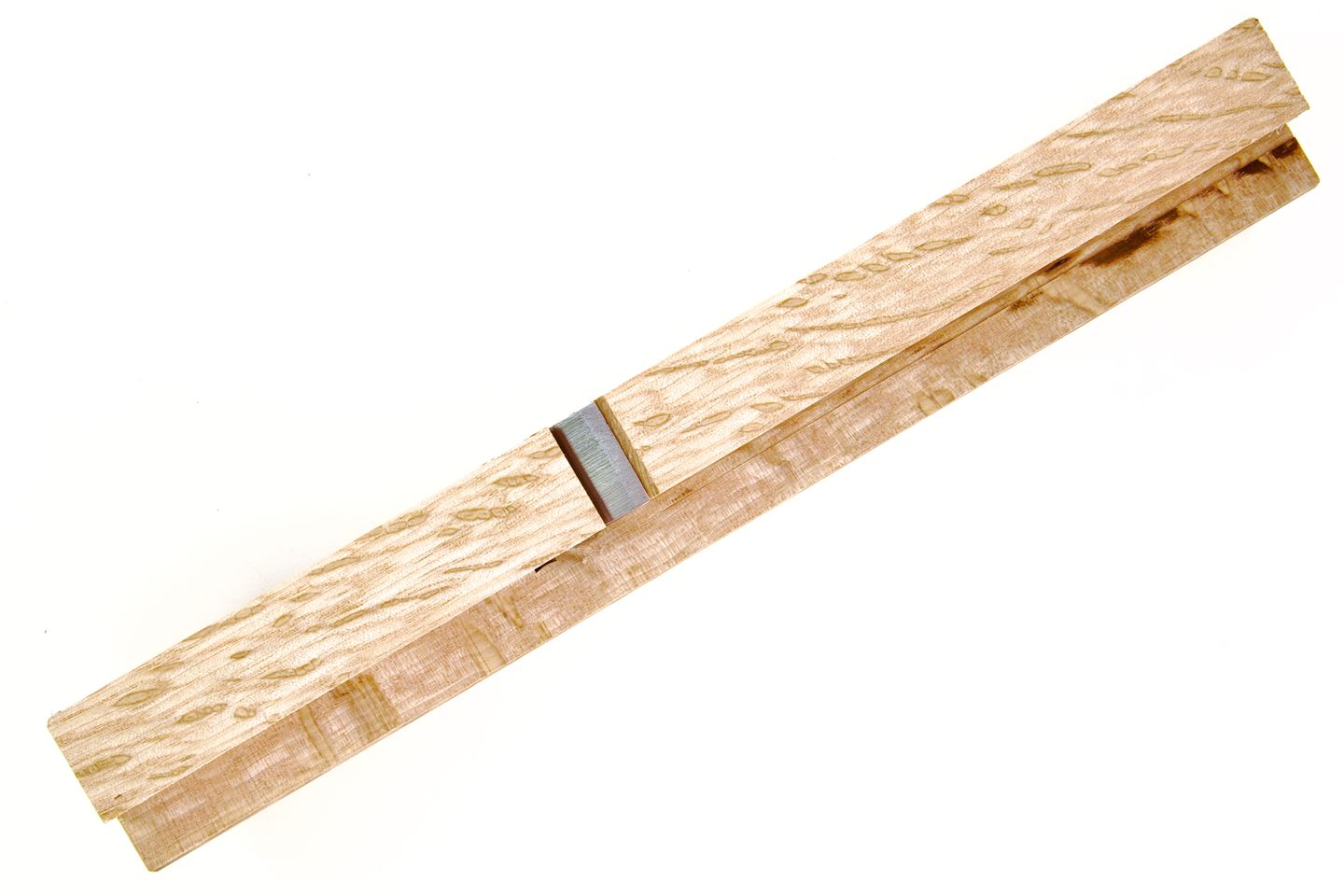

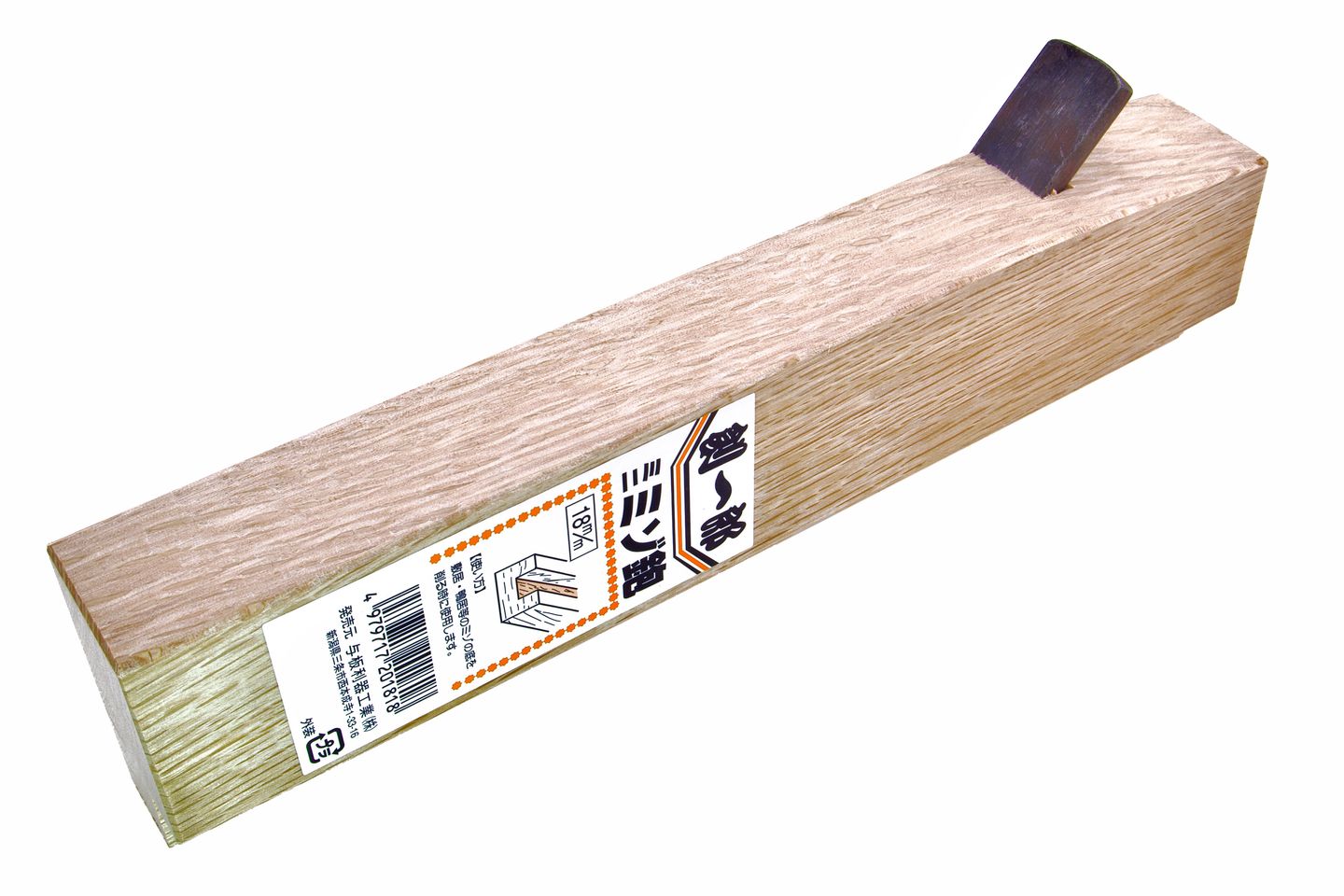

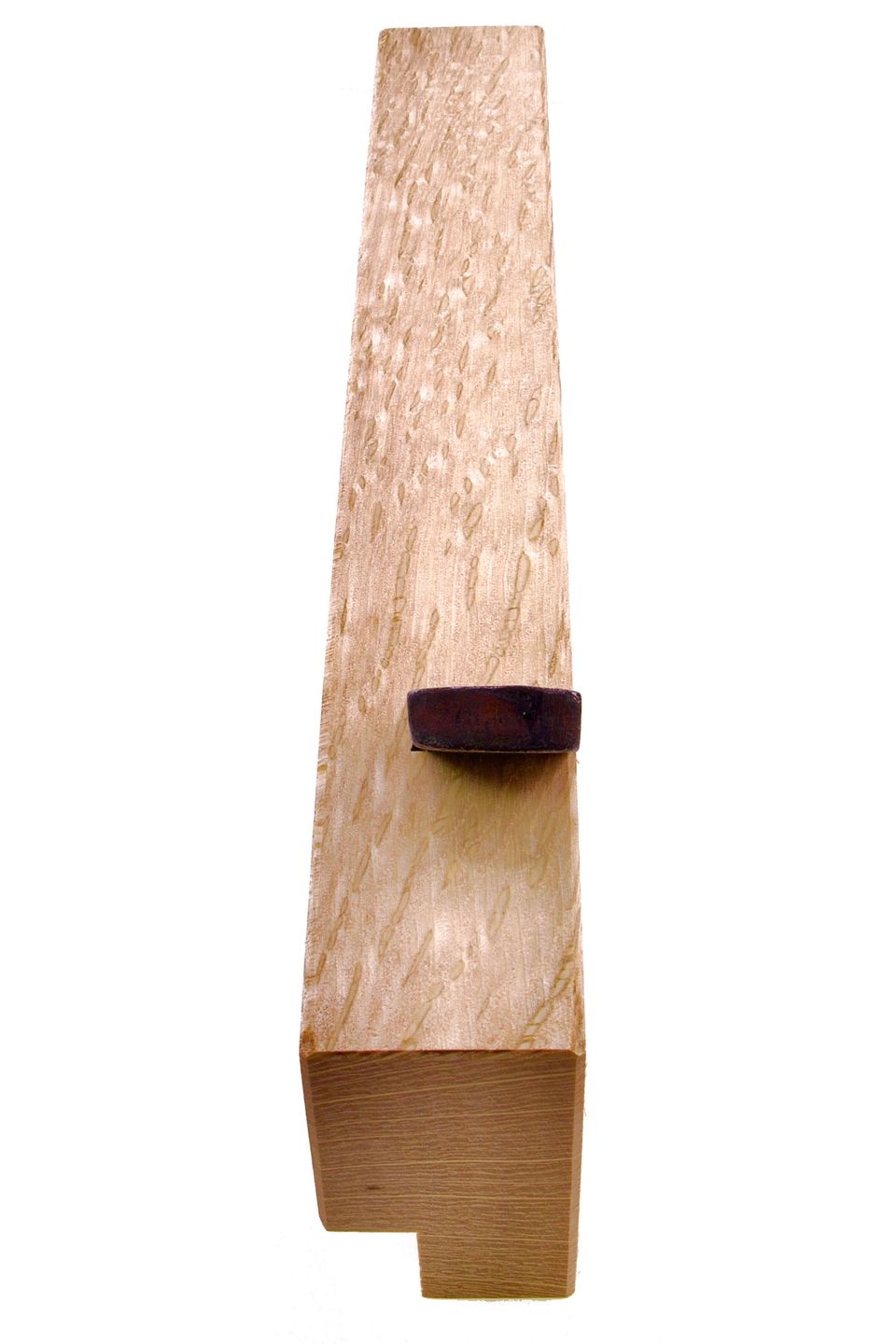

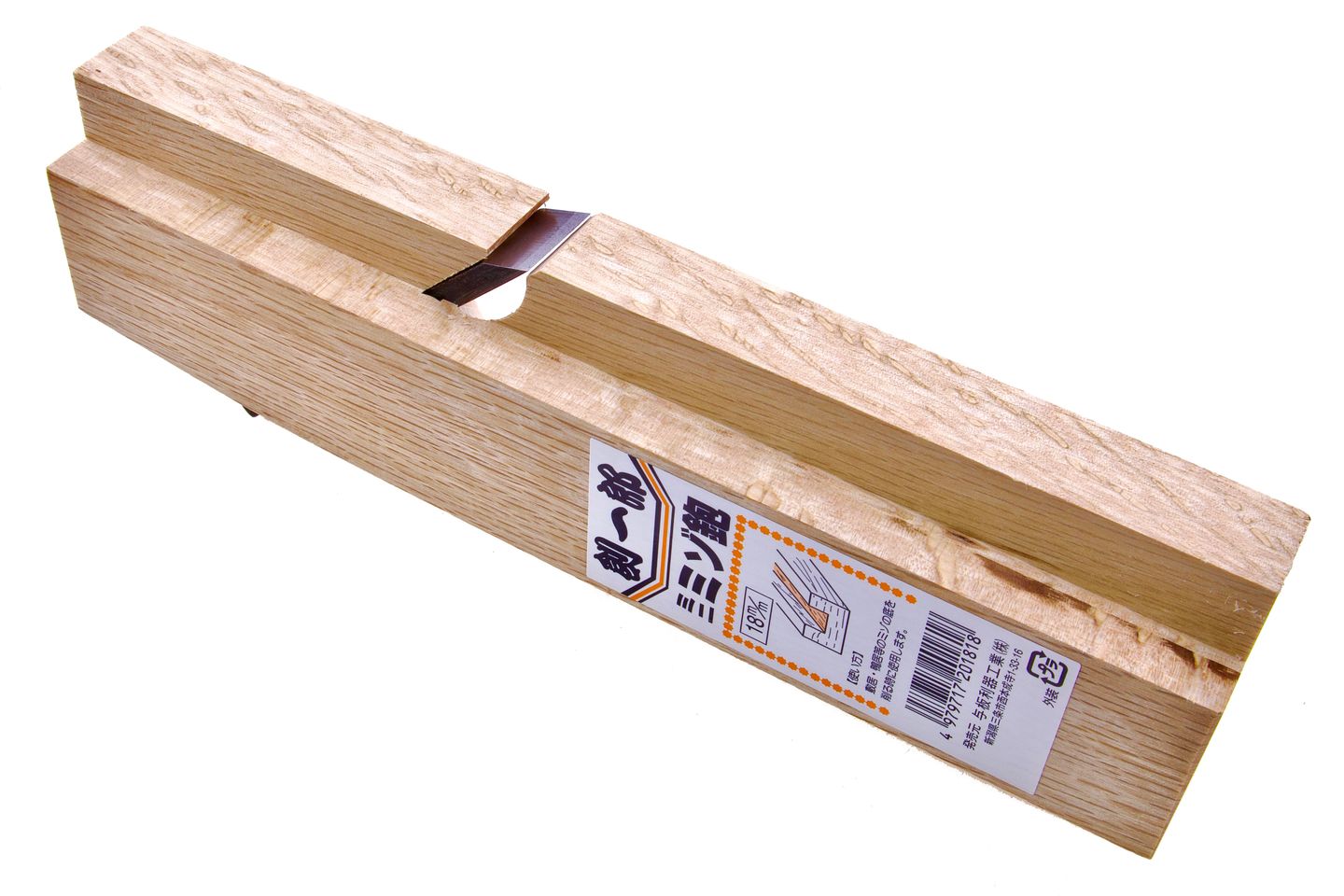

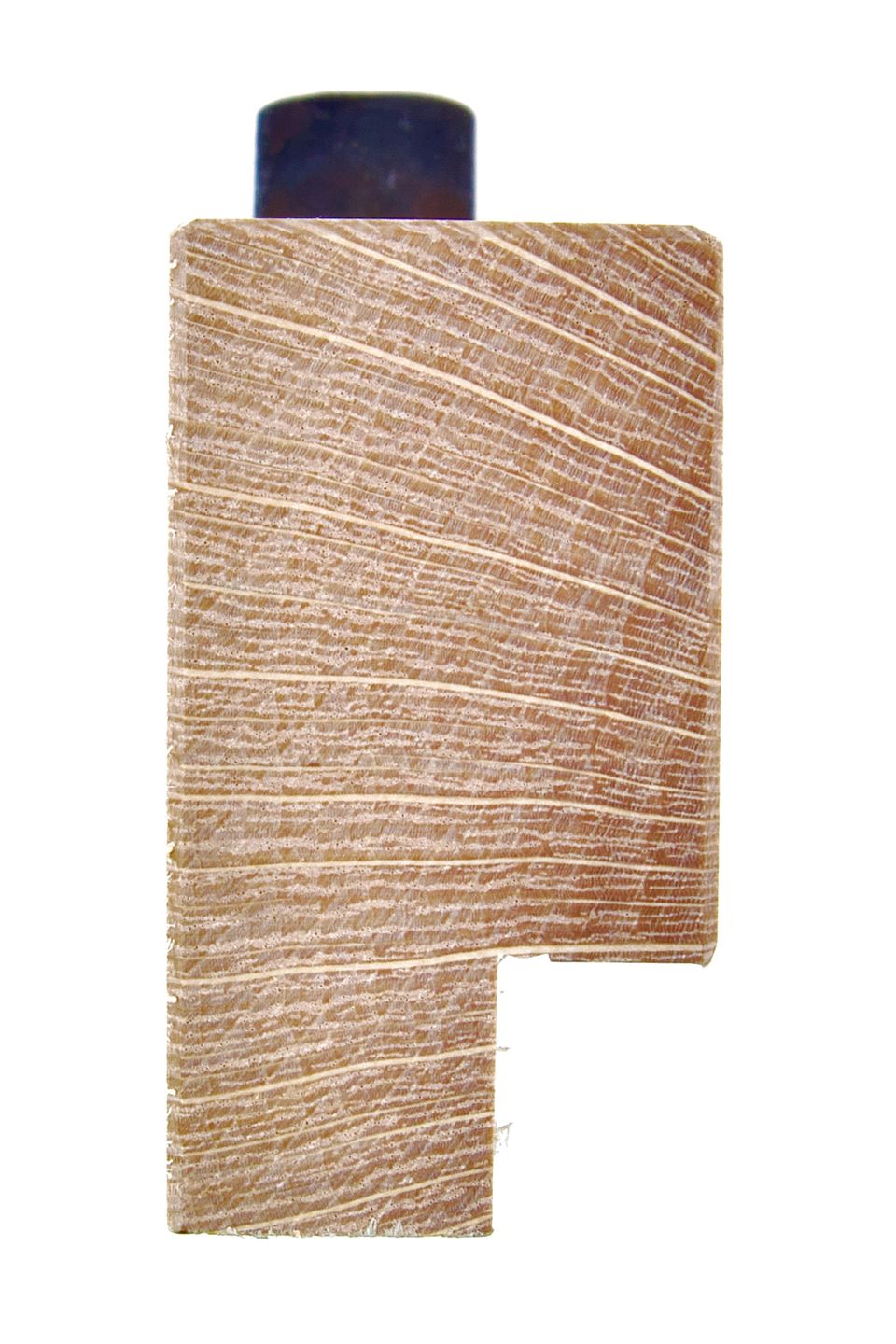

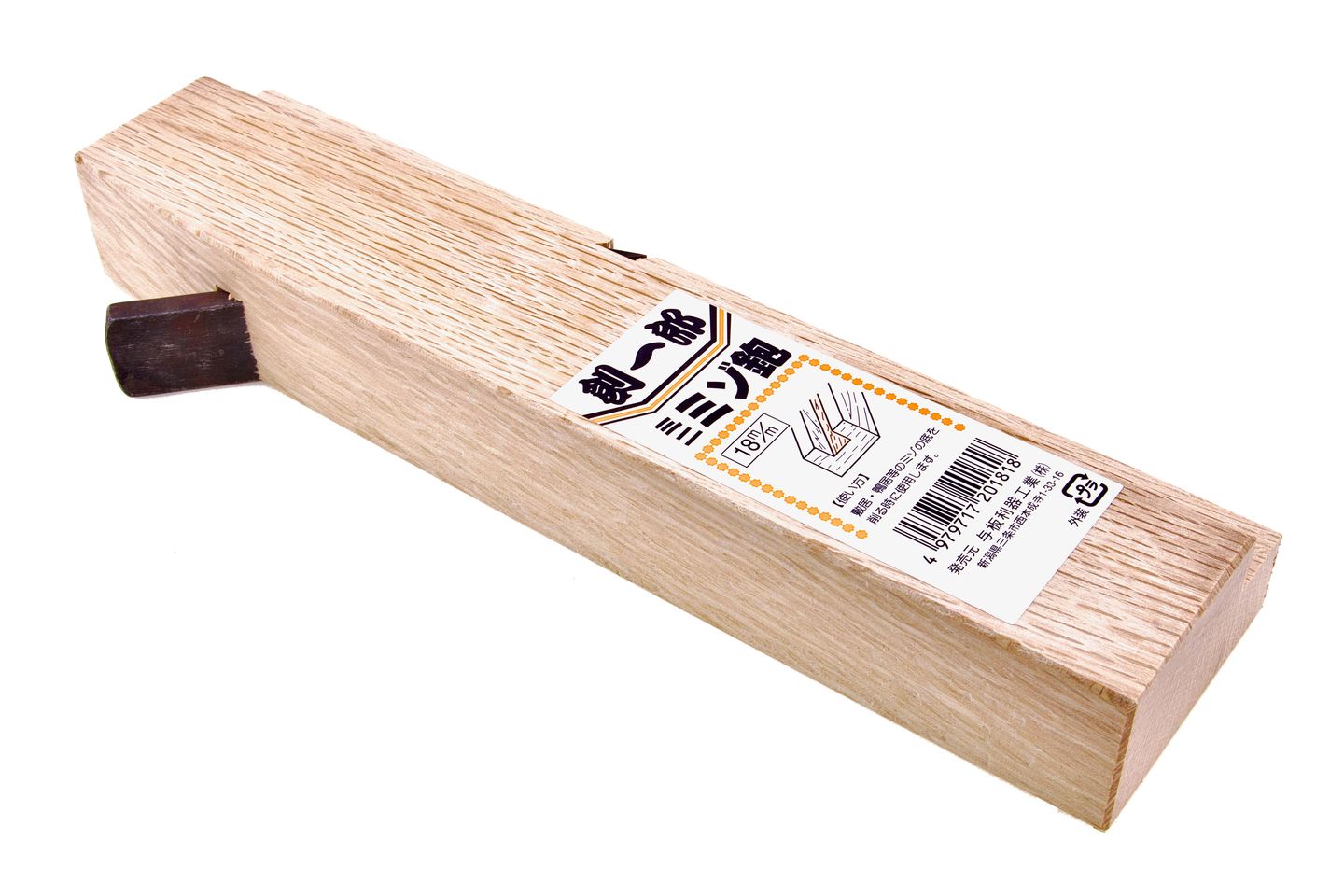

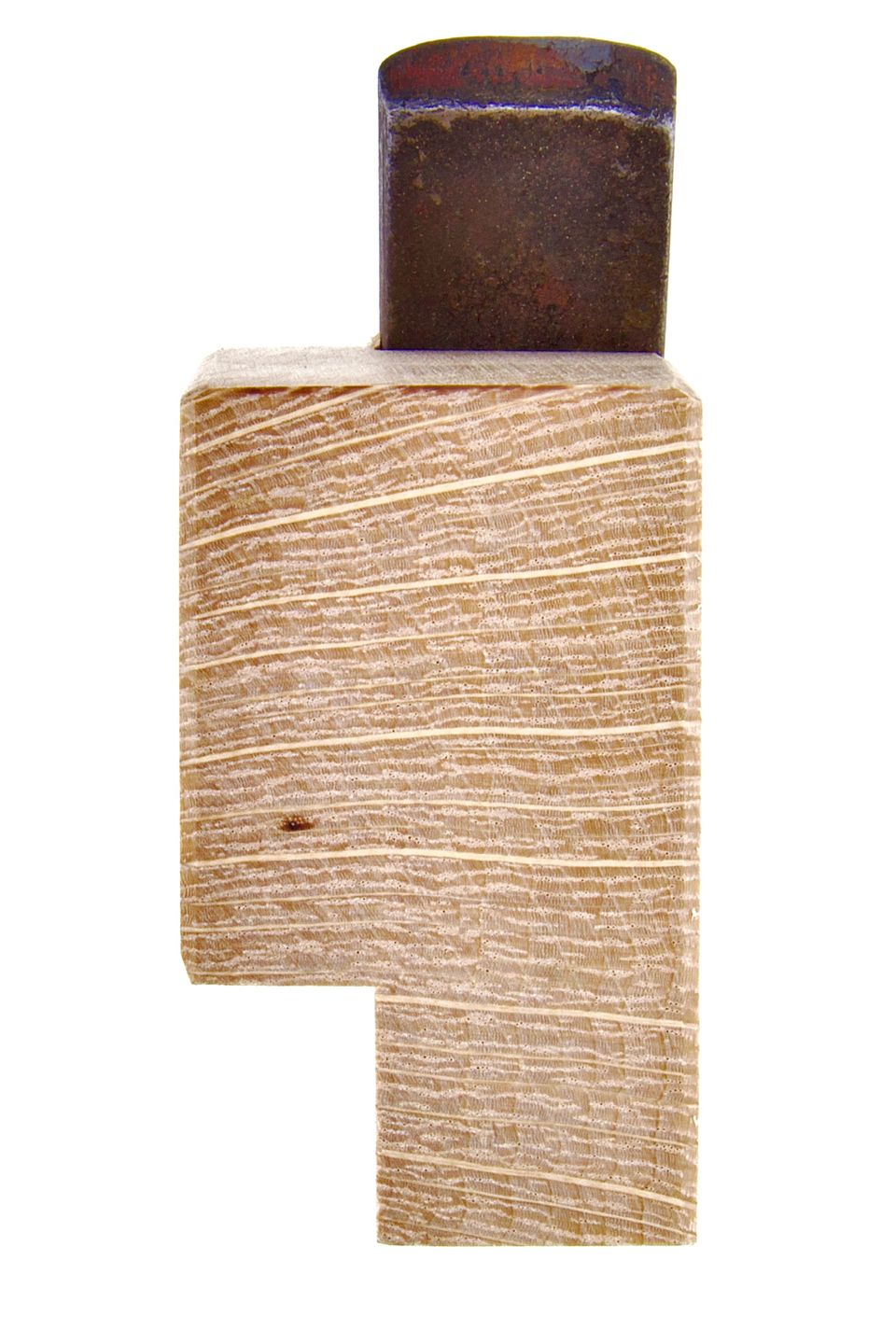

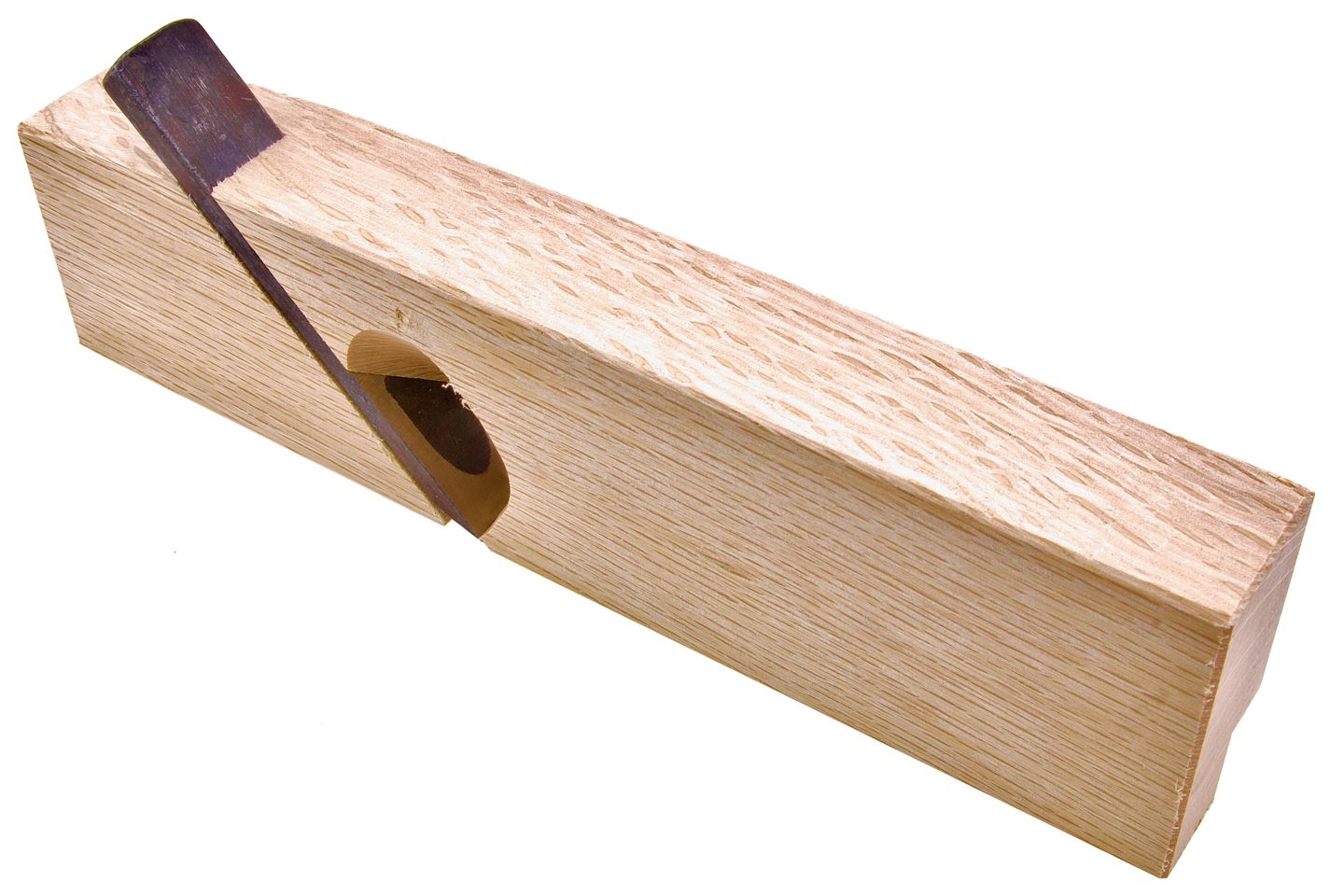

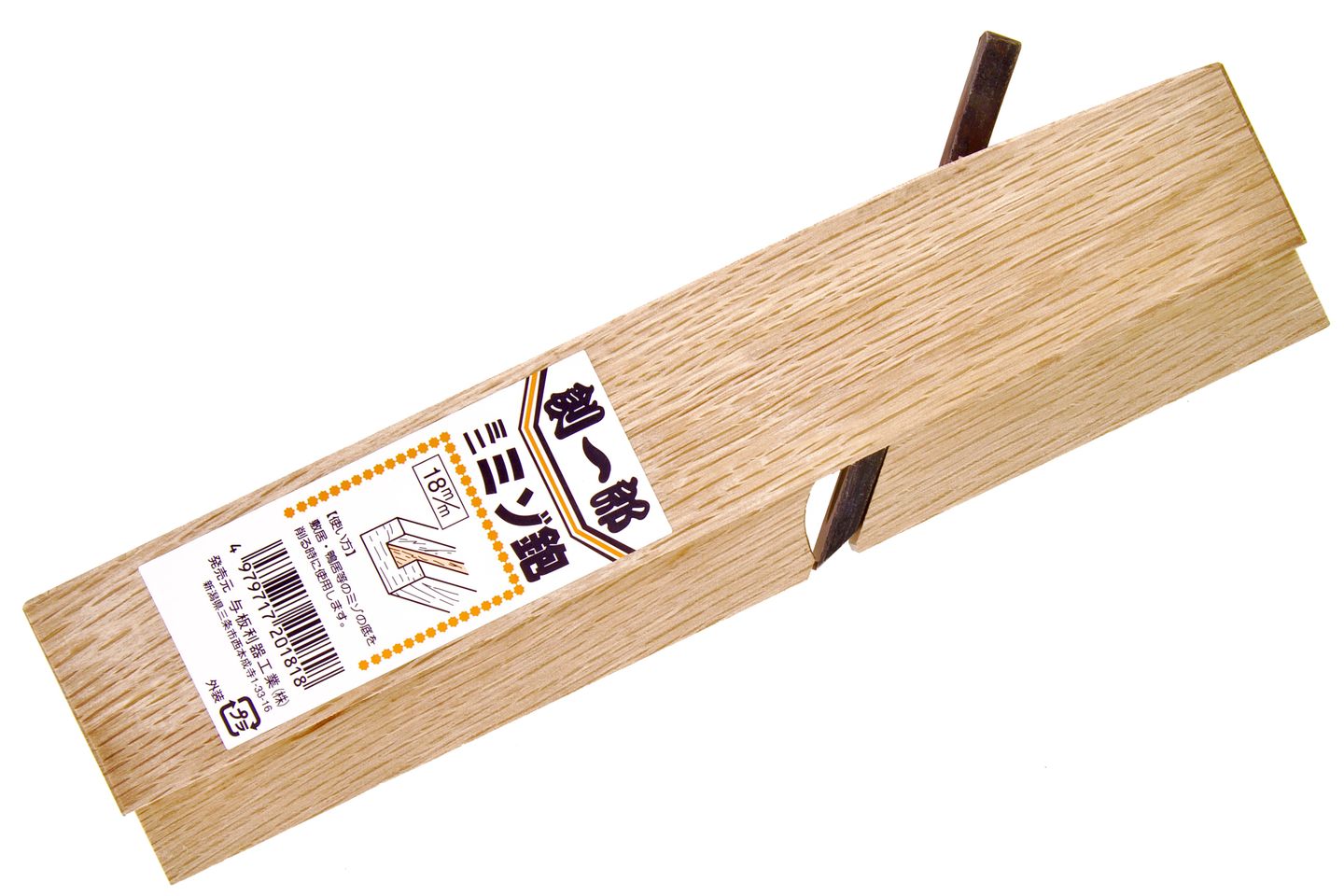

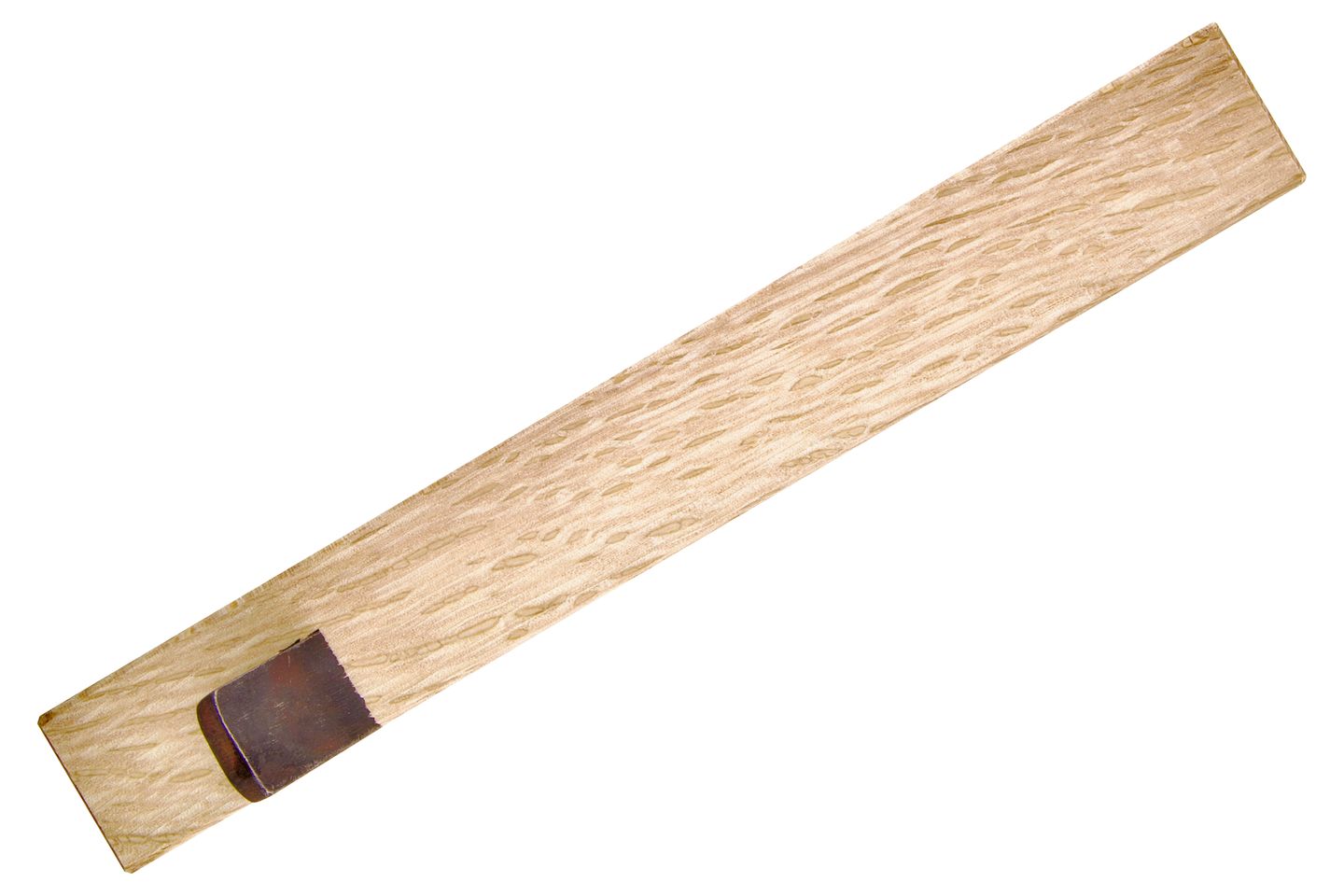

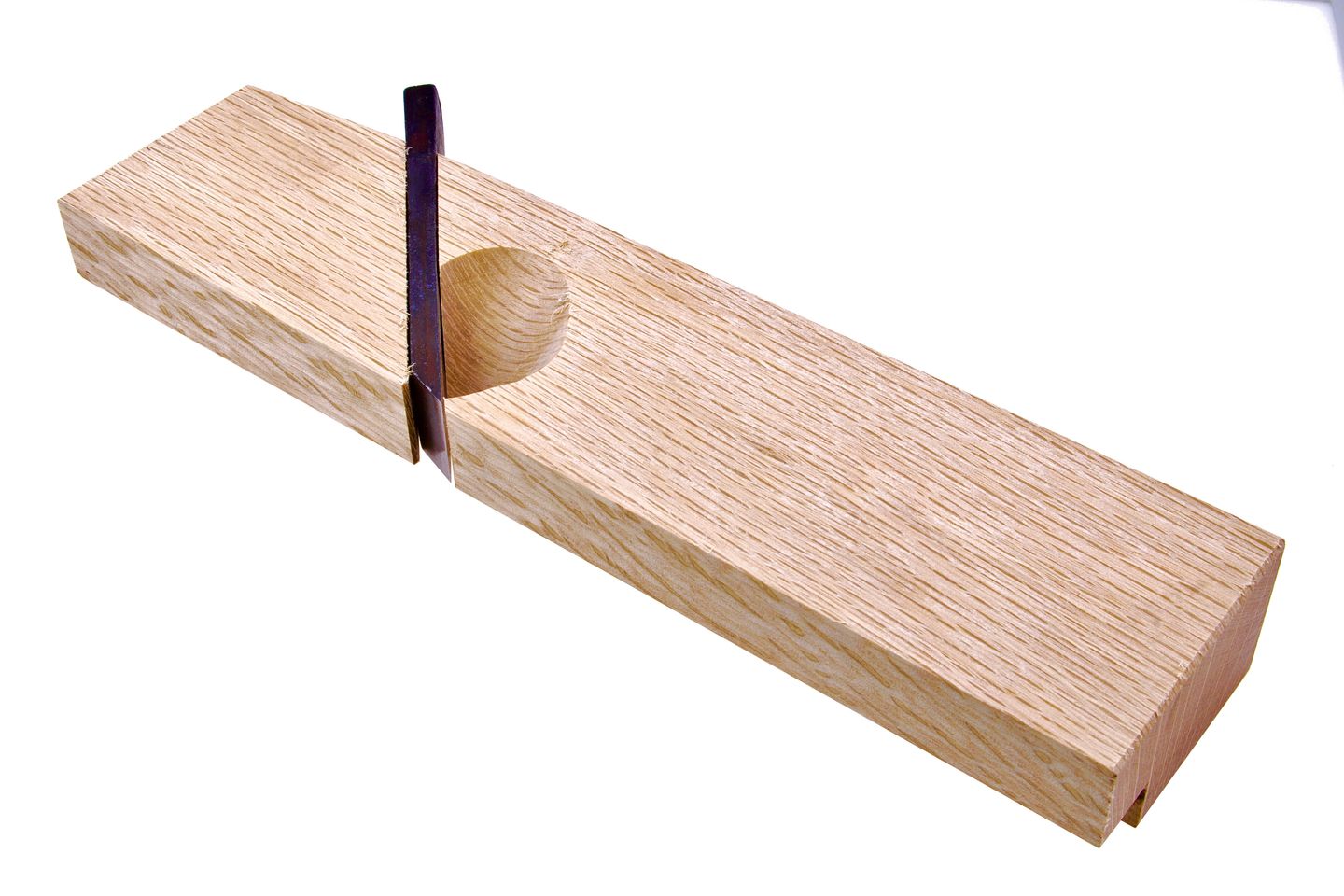

This Yoita Soichiro dado kanna plane 18mm is a specialist Japanese woodworking tool crafted for precise cleaning and flattening of groove bottoms. Featuring a hardwood oak body and a sharp carbon tool steel (SK-5) blade set at a traditional angle, it offers durable, consistent control when working within narrow cuts.
Perfect for joinery preparation, dado cleaning, and slot smoothing in flooring and cabinetry, this groove plane ensures a flush finish across trench interiors. It’s also well-suited for traditional Japanese woodworking applications and restoring shallow routed channels in cabinetry and furniture making.
Product Data:
• Product dimensions: W: 40mm x H: 55mm x L: 225mm
• Blade Width: 18mm
• Handle Material: Oak
• Blade Material: Carbon tool steel (SK-5)
• Weight: 375g
• Country of Origin: Japan

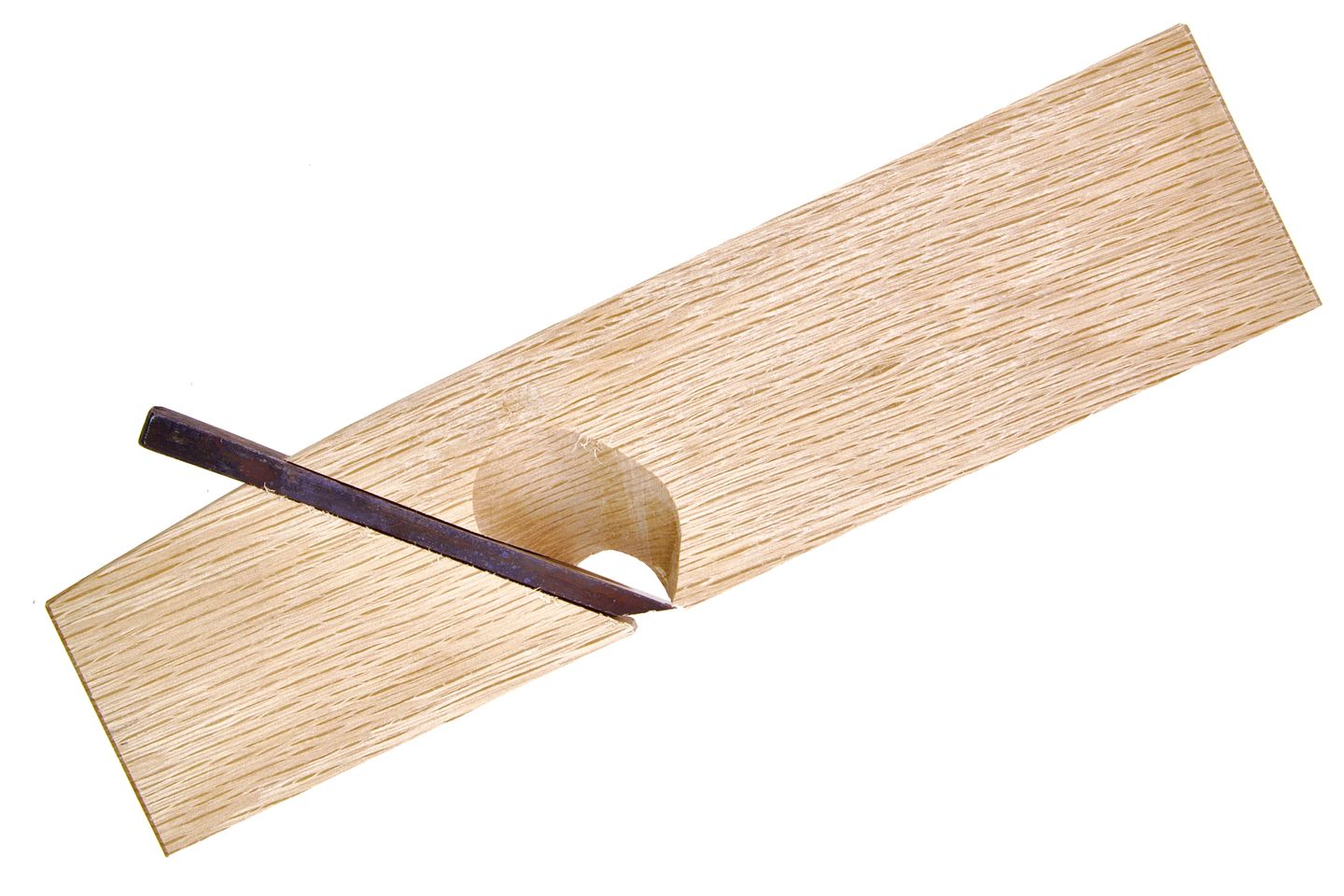

To use, position the groove plane over the channel with the blade aligned to the groove bottom. Apply steady pressure while drawing the tool along the length of the groove, pulling the tool towards you. Repeat in overlapping passes for best results. To adjust the blade position, gently tap the back of the blade to remove it from the wooden body, then, ensuring the bevel faces towards the back of the plane body, place the blade back into the plane with the cutting edge slightly higher than desired, gently tapping the blade into place, ensuring it is seated correctly, with the cutting edge square with the foot of the plane, before gently tapping the top of the blade so that the cutting edge protrudes as desired. Always ensure the blade is sharp and secured firmly in place before use.
After each use, brush off debris and wipe the blade clean. Apply a light coating of oil to the carbon steel blade to prevent rust. Store in a dry place, and keep out of reach of children. Use protective gloves during use to avoid injury.
Technical characteristic | Value |
---|---|
Item ID | 44855 |
Condition | New |
Manufacturer | Yoshihiro |
Manufacturing country | Japan |
Net weight | 375 g |
Weight | 475 g |
Dimensions | 225×40×55mm |
Customs tariff number | 8205.70 |
JAN Code: 4979717201818
